Quality Since 1971!       Design-Engineer-Manufacture-Install

Click on thumbnails below to see specifications and photos of each model

  • 1850
    Fiberglass Speed Slide Water Slide Model 1850
  • 1841
    Double Fiberglass Flume Water Slide Model 1841
  • 1851
    Fiberglass Speed Slide Water Slide Model 1851
  • 1896
    Combination Flume Water Slide Model 1896
  • 1949
    Open & Closed Fiberglass Flume Water Slide Model 1949

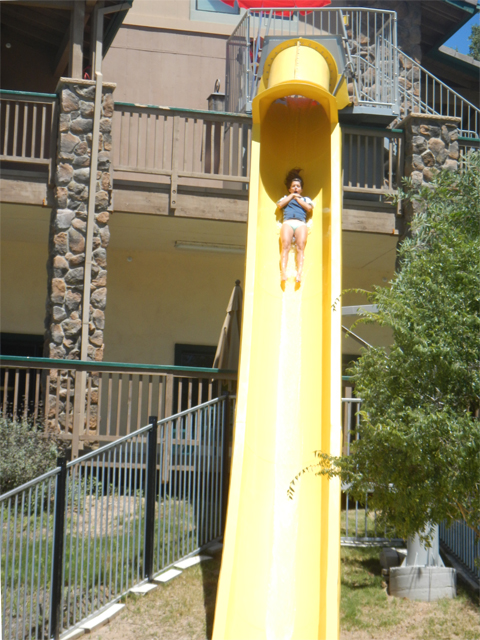

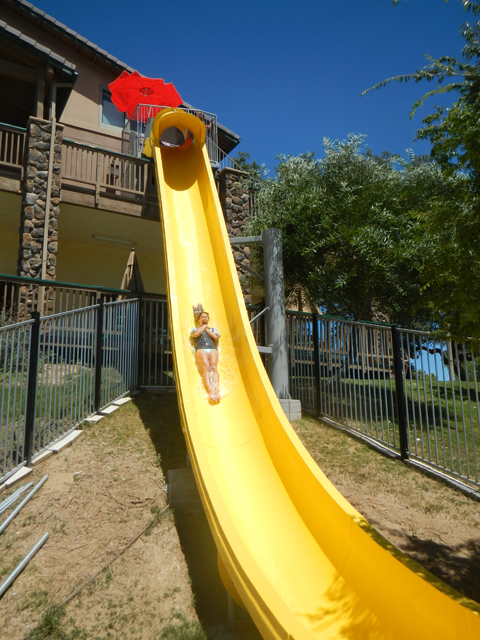

Fiberglass Speed Slide Model 1850 Top ViewFiberglass Speed Slide Water Slide
Model: 1850

Description : Speed slide water slide
Centerline Run : 65 3"
Entry Height : 30' 8½"
Platform Size : abstract size, approximately 6’ 5” x 7’ ½”'
Space Requirements : 14' 5" x 102' 0" – Space requirements may vary with options chosen.

  • 32” inside diameter closed flume fiberglass
  • 36” inside diameter fiberglass flume
  • Self-enclosed recirculating system (no pool required)
  • Fiberglass exit lane
  • Pool application also available
  • 150-200 gpm water flow required

Recirculating System
NO POOL REQUIRED!

click on images to enlarge

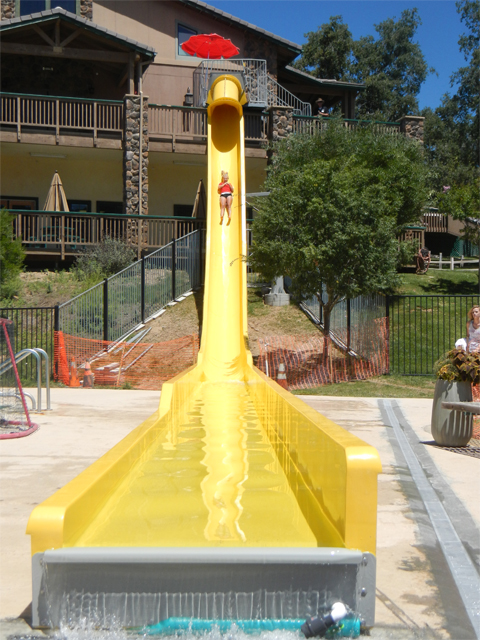

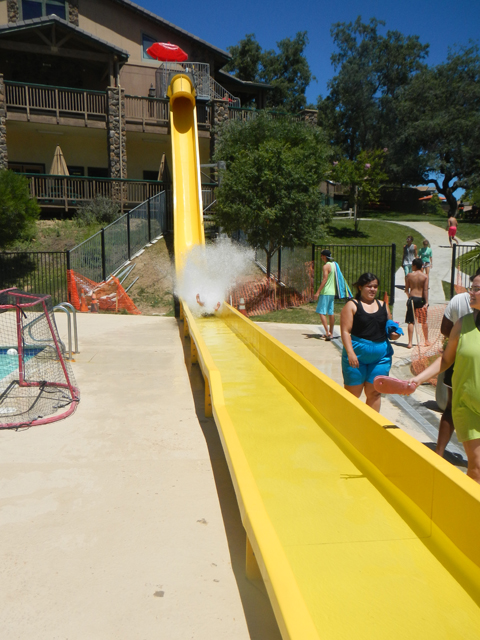

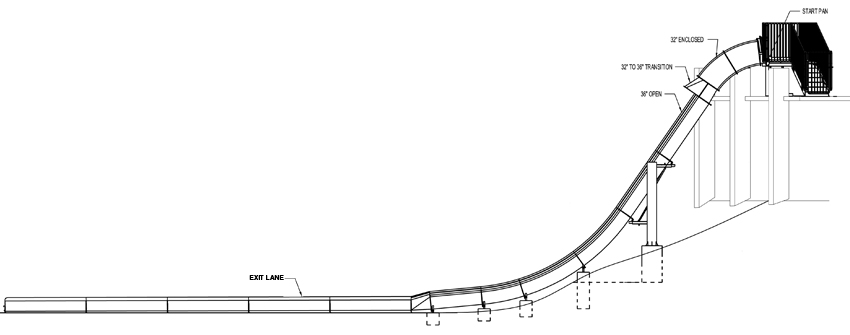

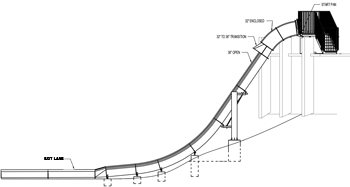

Fiberglass Speed Slide Model 1850 Fiberglass Speed Slide Model 1850 Fiberglass Speed Slide Model 1850Fiberglass Speed Slide Model 1850 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

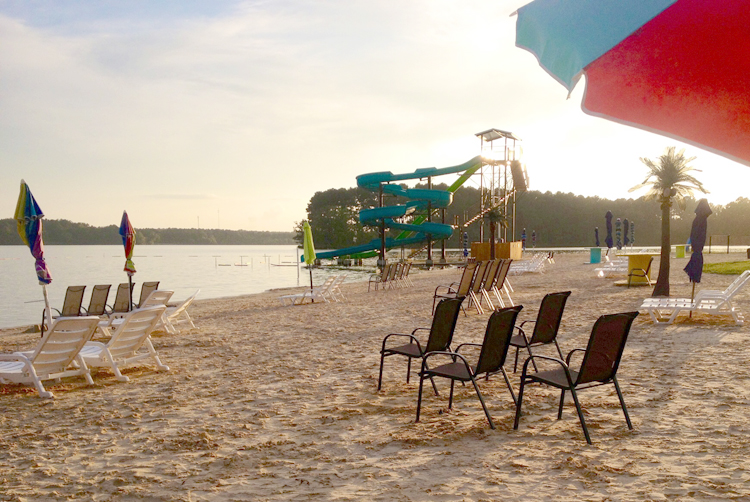

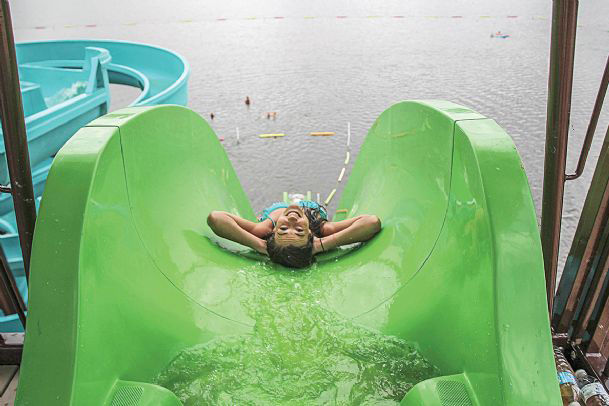

Fiberglass Water Slide Model 1841Fiberglass Water Slide
Model: 1841

Description : Single open flume fiberglass body water slide featuring (4) 270° reverse curves and fiberglass speed slide water slide.
Centerline Run : Body 229' 4"; Speed 72' 9"
Entry Height : 31' 6"
Platform Size : 10' x 16'
Space Requirements : 44' 6" x 73' 1 " – Space requirements may vary with options chosen.

  • 36" inside diameter fiberglass water slide flume
  • Water flow required: Body: 600-800 gpm; Speed: 150-200 gpm
  • Splash down dimension: 37' x 41'
  • Minimum water depth: 3'

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

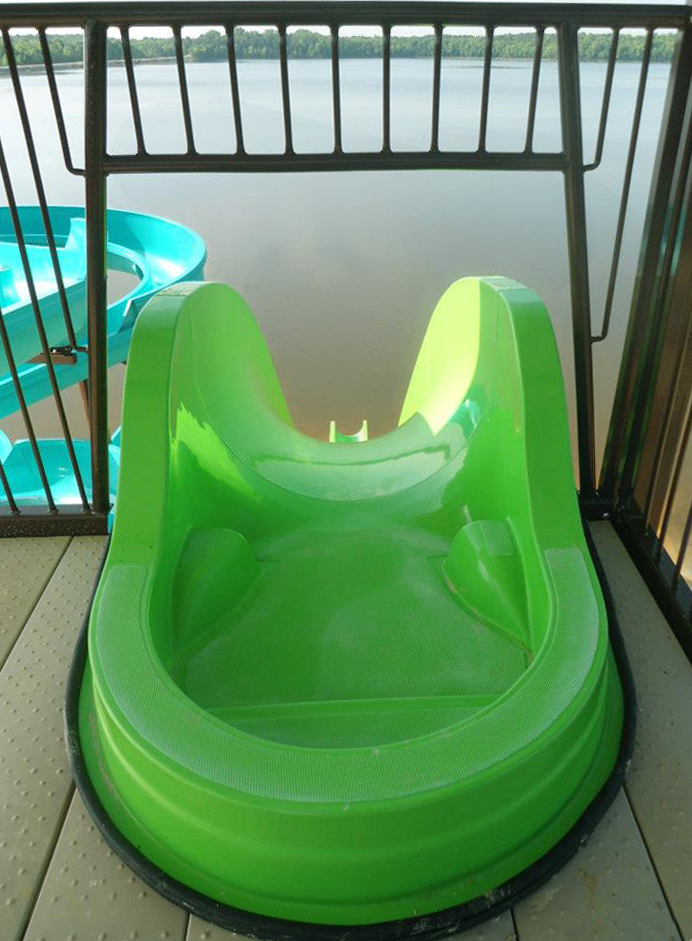

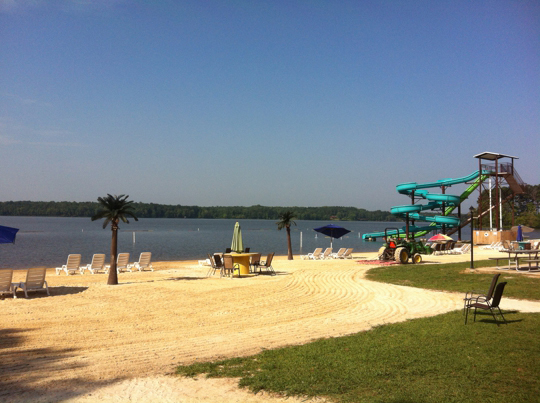

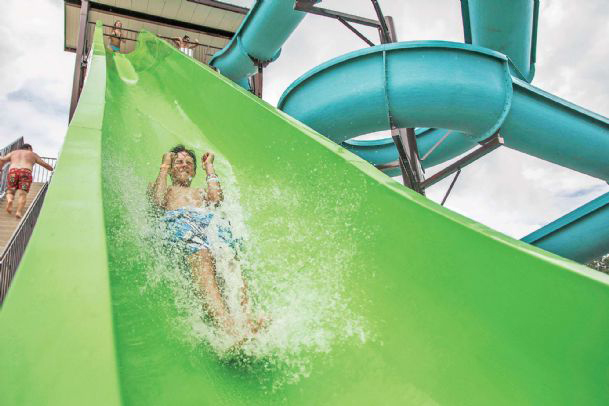

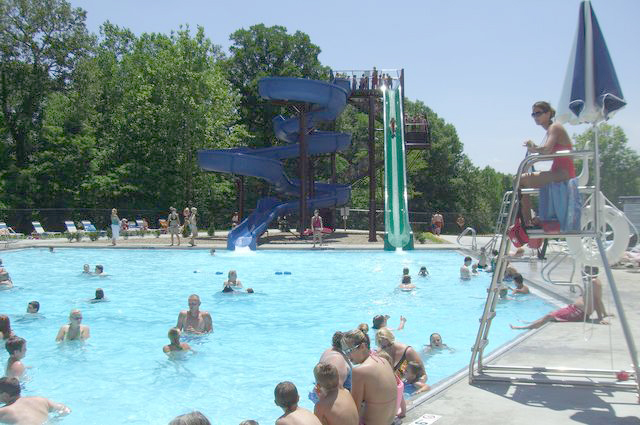

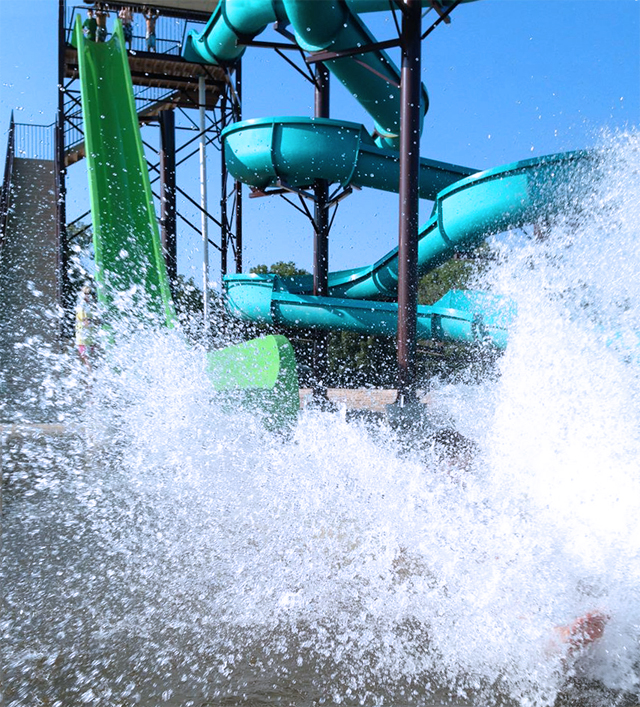

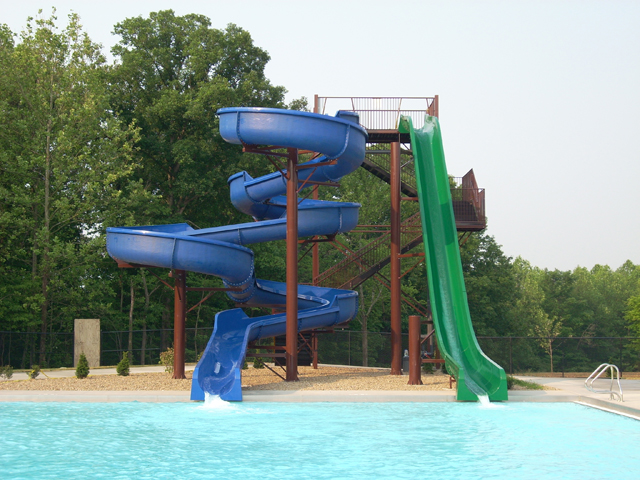

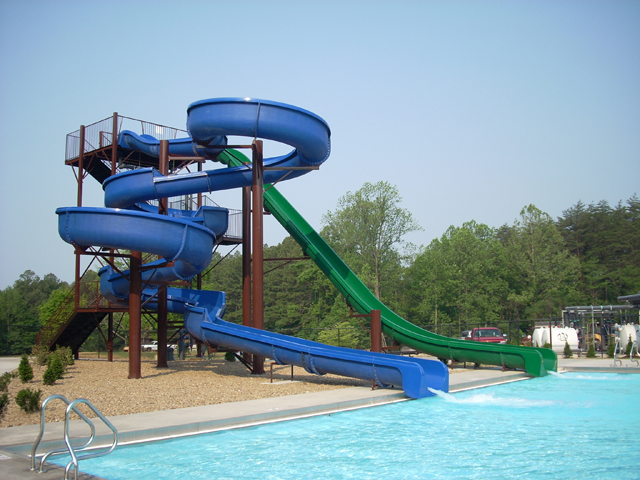

Fiberglass Water Slide Model 1841

Fiberglass Water Slide Model 1841

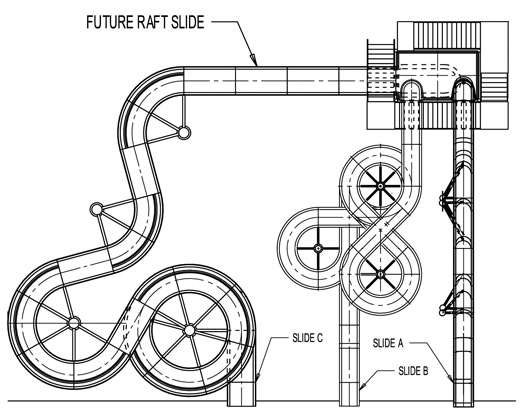

#1841M

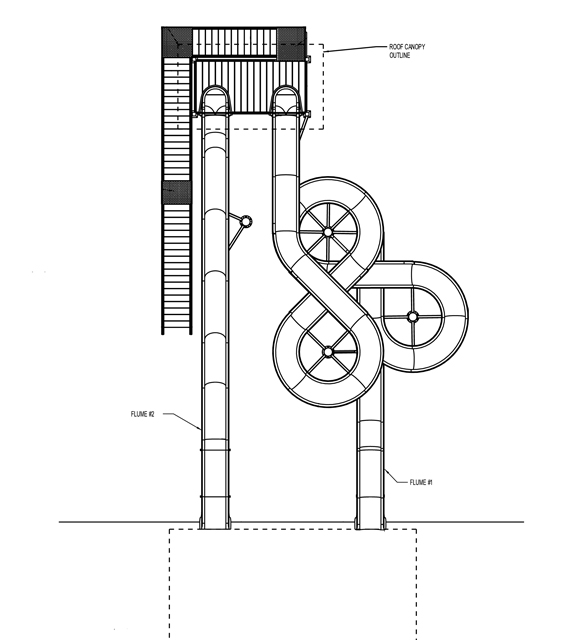

Fiberglass Water Slide Model 1841 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Fiberglass Water Slide Model 1841

Fiberglass Water Slide Model 1841

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Fiberglass Water Slide Model 1841

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

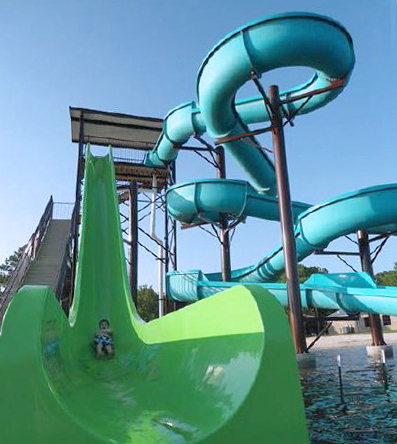

Fiberglass Water Slide Model 1841

Fiberglass Water Slide Model 1841

Fiberglass Water Slide Model 1841

Fiberglass Water Slide Model 1841

Fiberglass Water Slide Model 1841 plan view

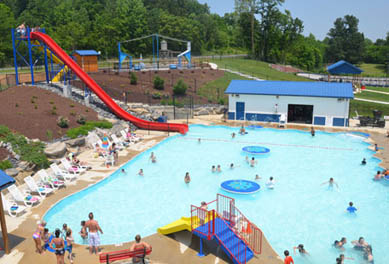

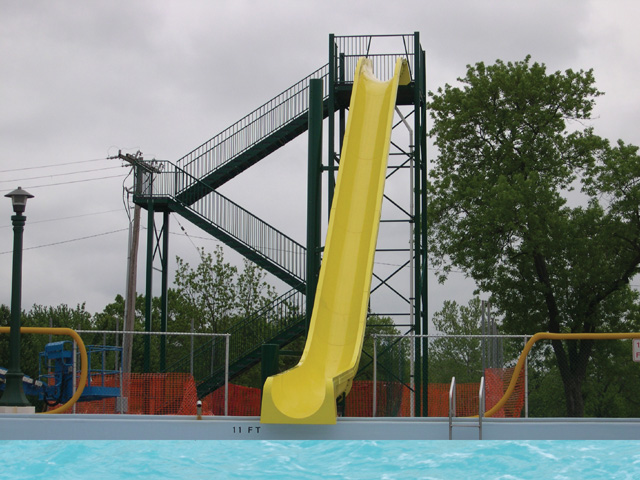

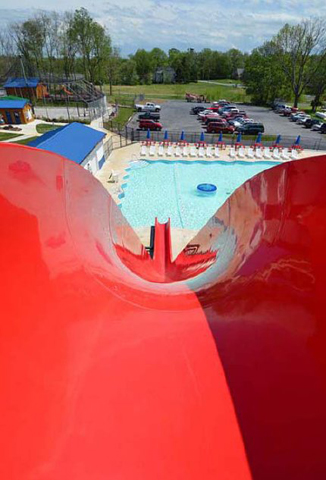

Fiberglass Speed Slide Model 1851 Top ViewFiberglass Speed Slide Water Slide
Model: 1851

Description : Speed slide water slide
Centerline Run : 73' 3"
Entry Height : 31' 6"
Platform Size : 8' x 8'
Space Requirements : 27' 2" x 65' 8" – Space requirements may vary with options chosen.

  • 36" inside diameter fiberglass water slide flume
  • 150-200 gpm water flow required
  • Splash down dimension: 13' x 41'
  • Minimum water depth: 3'

click on images to enlarge

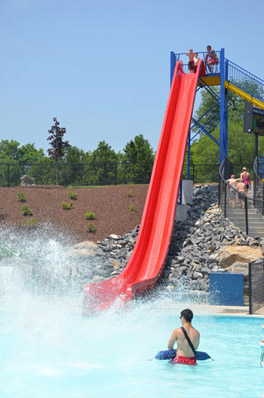

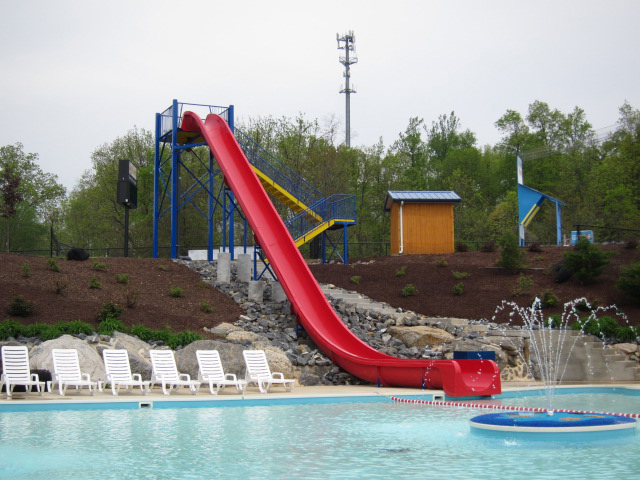

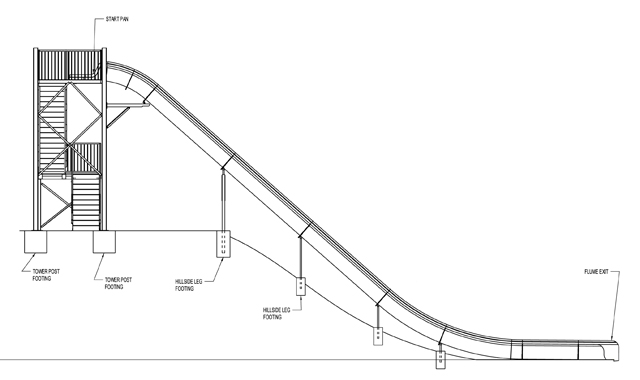

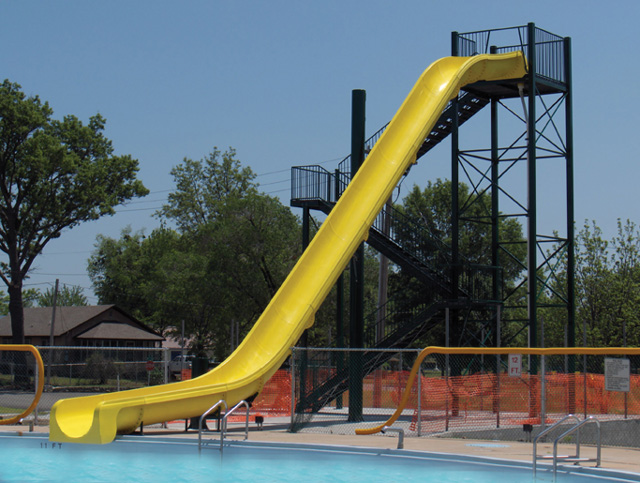

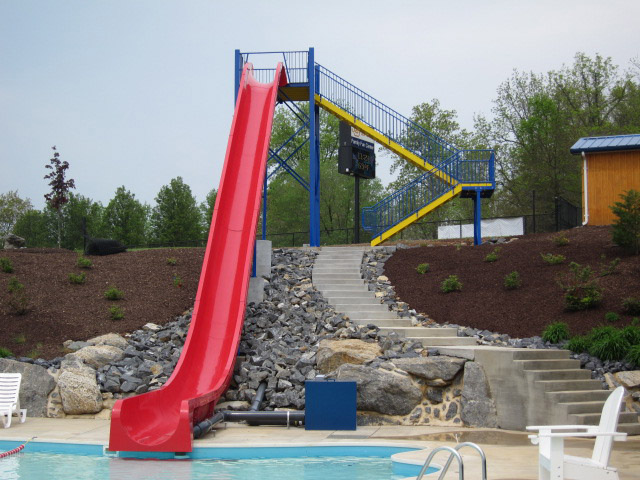

Fiberglass Speed Slide Model 1851Fiberglass Speed Slide Model 1851 Fiberglass Speed Slide Model 1851 Fiberglass Speed Slide Model 1851 Fiberglass Speed Slide Model 1851 Fiberglass Speed Slide Model 1851 Fiberglass Speed Slide Model 1851 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

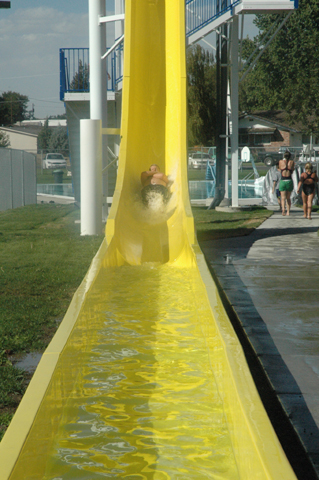

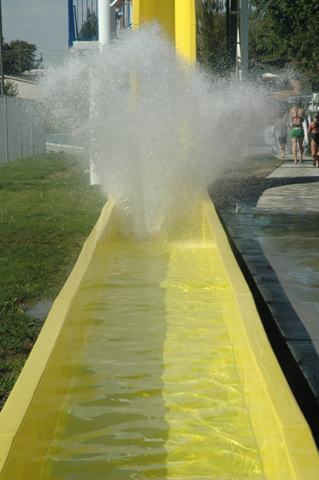

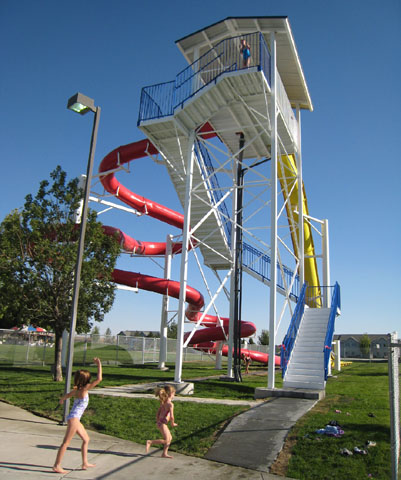

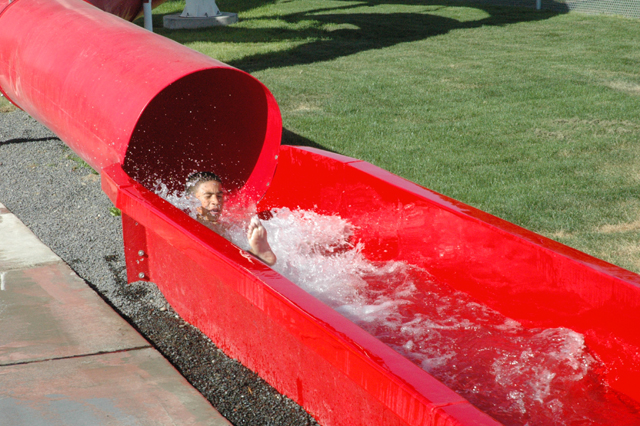

Combination Flume Water Slide Model 1896Fiberglass Water Slide with exit lanes
Model: 1896

Description : Single 32” I.D. closed flume
slide featuring (1) full figure 8 and (1) 360° turn and open flume speed slide water slide.
Centerline Run : Closed: 228' 0"
Speed (open): 69' 3"
Entry Height : 31' 6"
Platform Size : 10' x 16'
Space Requirements : 49' 0" x 129' 0"– Space requirements may vary with options chosen.

Recirculating System
NO POOL REQUIRED!
  • 36" inside diameter fiberglass open flume water slide
  • 32" inside diameter fiberglass closed flume water slide
  • Self-enclosed recirculating system (no pool required)
  • Exit Lanes
  • Pool application also available
  • Water flow required: Closed: 600-800 gpm; Speed: 150-200 gpm

click on images to enlarge

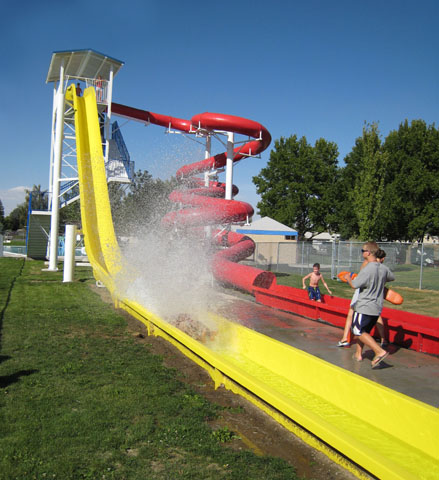

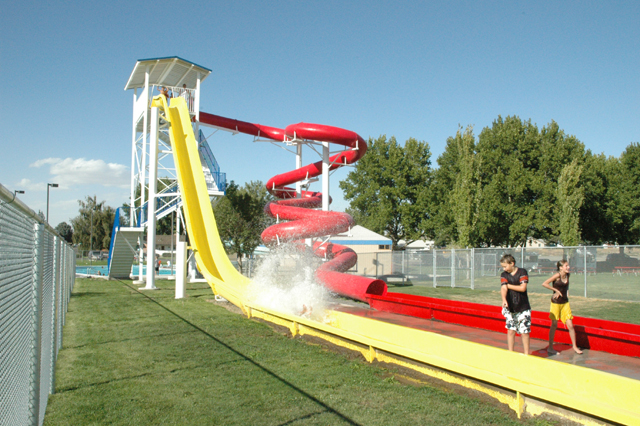

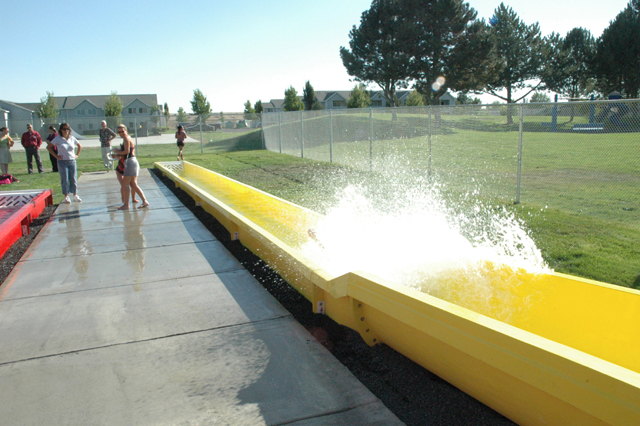

Combination Flume Water Slide Model 1896 Combination Flume Water Slide Model 1896 Combination Flume Water Slide Model 1896

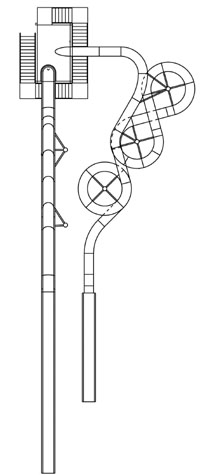

Combination Flume Water Slide Model 1896 Combination Flume Water Slide Model 1896 Combination Flume Water Slide Model 1896 Combination Flume Water Slide Model 1896 Plan View

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

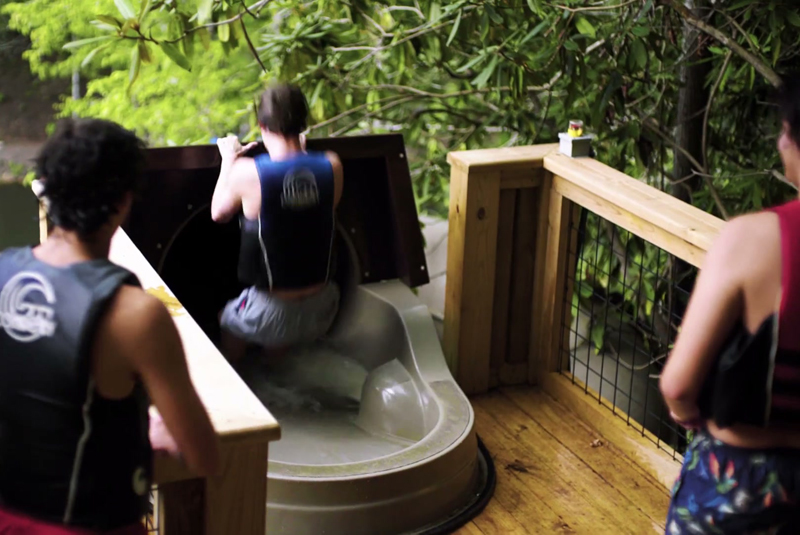

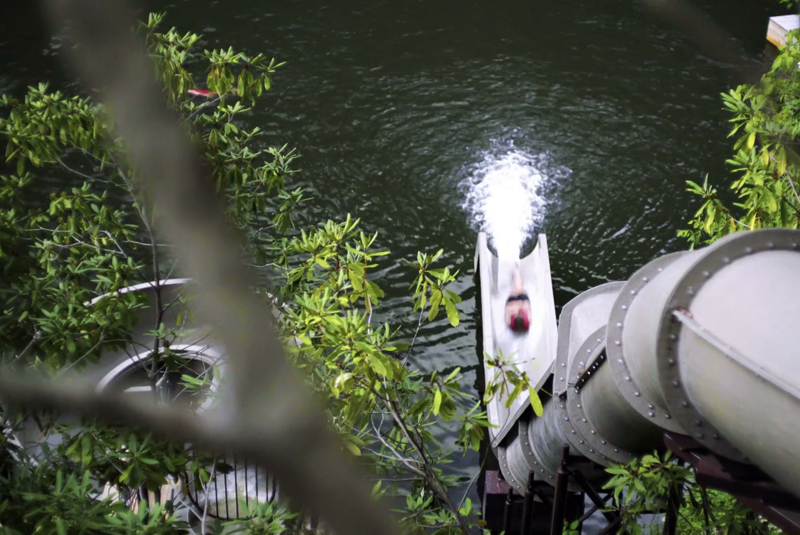

Open & Closed Fiberglass Flume Water Slide Model 1949Closed & Open Fiberglass Flume Water Slide
Model: 1949

Description: Single open & closed fiberglass flume water slide featuring 360° curve.
Centerline Run: 103' 5"
Entry Height: 37' 9-11/16"
Space Requirements: 12' 7" x 64' 11 ½" – Space requirements may vary with options chosen.

  • 32” inside diameter closed fiberglass flume.
  • 36" inside diameter open fiberglass flume.
  • 500-700 gpm water flow required.
  • Minimum water depth: 3' 0"
  • USA Made

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

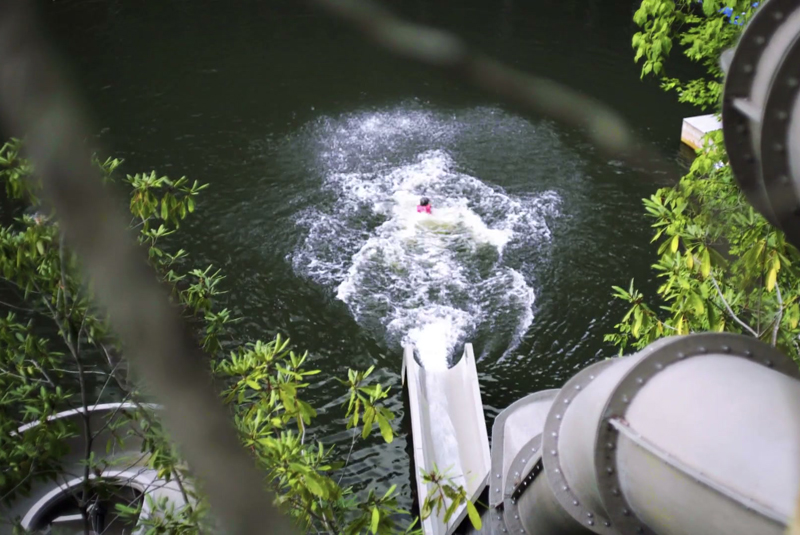

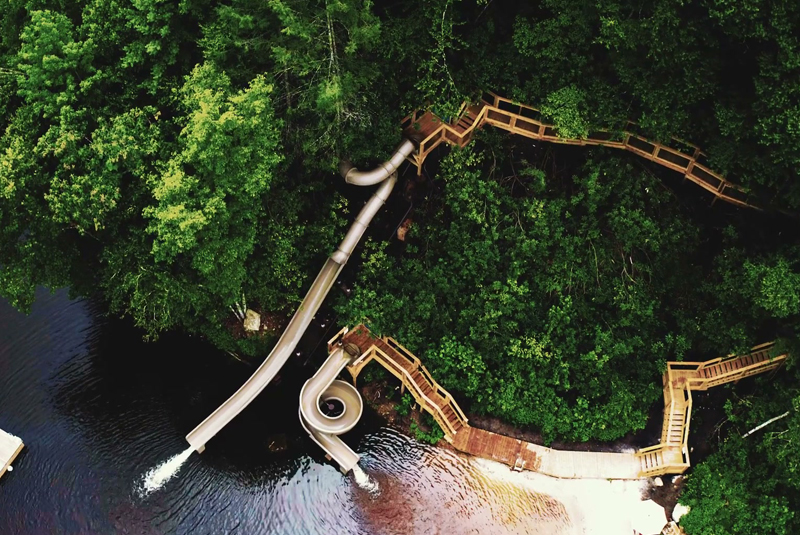

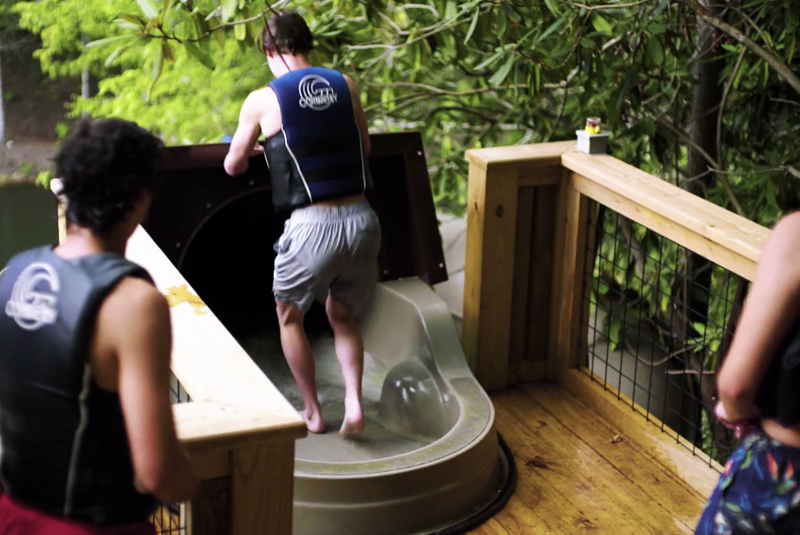

Open & Closed Fiberglass Flume Water Slide Model 1949

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

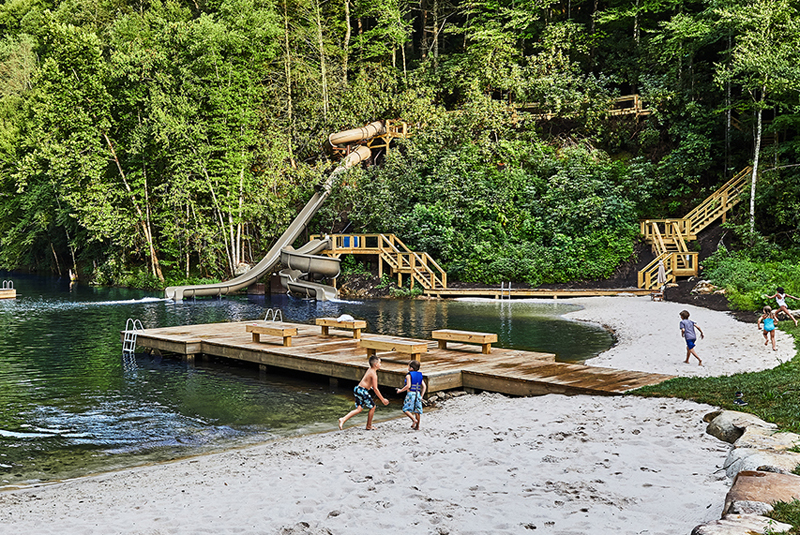

Open & Closed Fiberglass Flume Water Slide Model 1949

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Open & Closed Fiberglass Flume Water Slide Model 1949 Open & Closed Fiberglass Flume Water Slide Model 1949 Open & Closed Fiberglass Flume Water Slide Model 1949

USA flag   Manufactured with Pride in the U.S.A.
