Quality Since 1971!       Design-Engineer-Manufacture-Install

Click on thumbnails below to see specifications and photos of each model

  • Cedarcroft
    Landscape & Hillside Slide Model: Cedarcroft
  • DeRocker
    Landscape & Hillside Slide Model: DeRocker
  • Dolhare
    Landscape & Hillside Slide Model: Dolhare
  • Hathaway
    Landscape & Hillside Slide Model: Hathaway
  • Holman
    Landscape & Hillside Slide Model: Holman
  • Jensen
    Landscape & Hillside Slide Model: Jensen
  • Mahoney
    Landscape & Hillside Slide Model: Mahoney
  • Pastrana
    Landscape & Hillside Slide Model: Pastrana
  • Piggett
    Landscape & Hillside Slide Model: Piggett
  • Riley
    Closed Fiberglass Flume Landscape Slide Model: Riley
  • Steinberg
    Landscape & Hillside Slide Model: Steinberg
  • Tri-Valley
    Landscape & Hillside Slide Model: Tri-Valley
  • Venturi
    Landscape & Hillside Slide Model: Venturi
  • Worcester
    Landscape & Hillside Slide Model: Worcester
  • 9210-32
    Closed Fiberglass Flume Landscape Slide Model: 9210-32

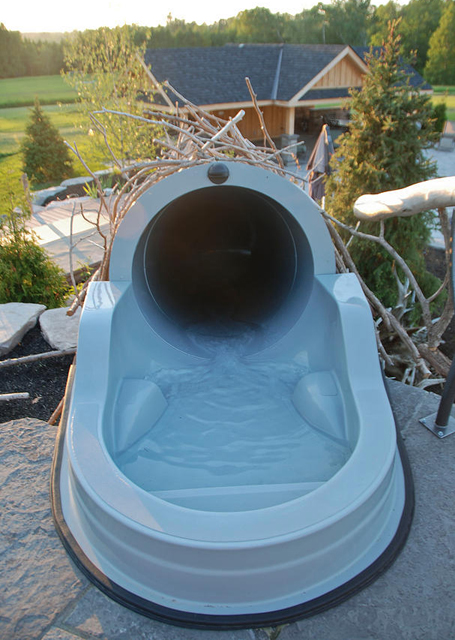

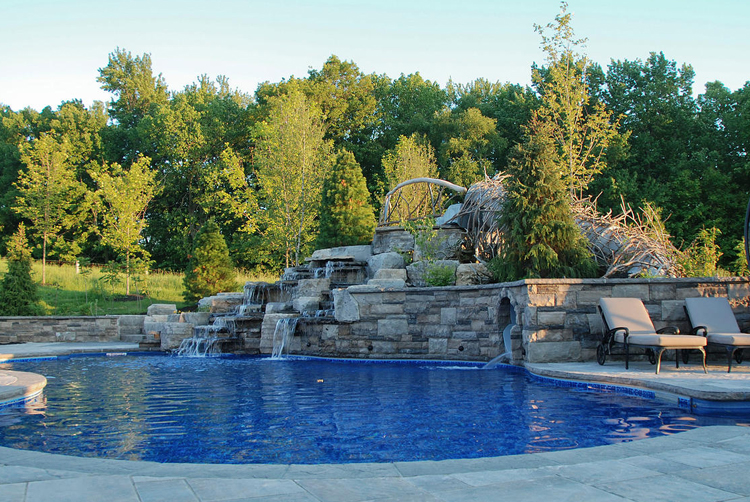

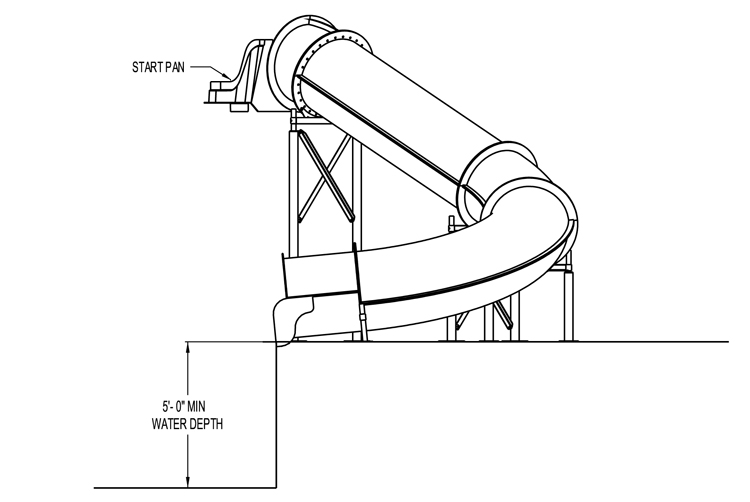

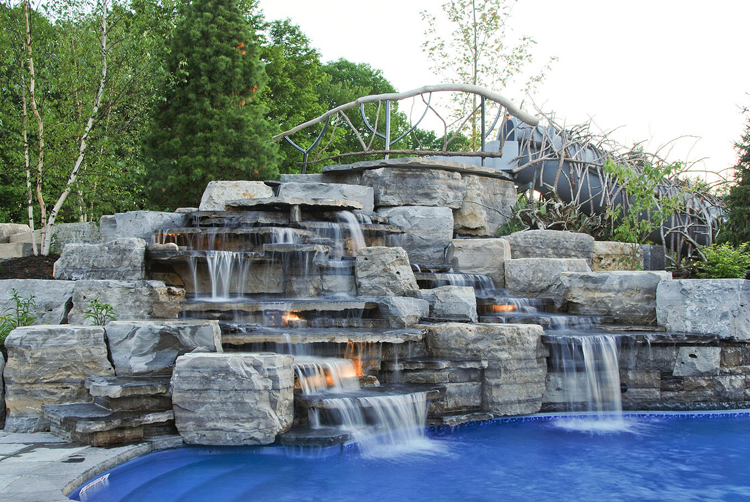

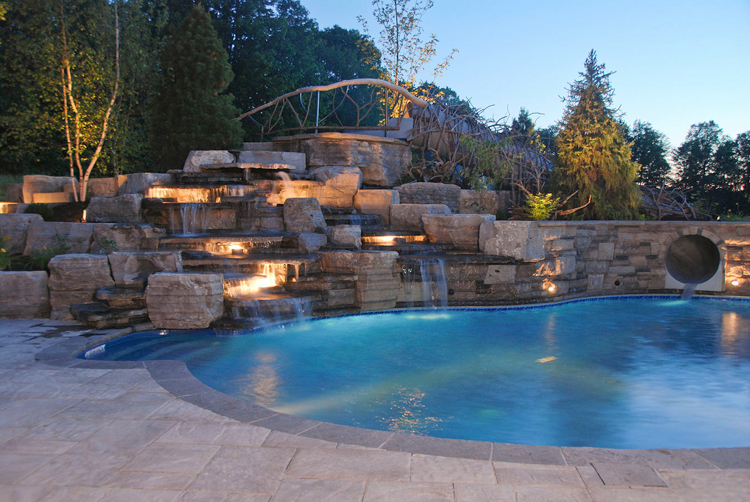

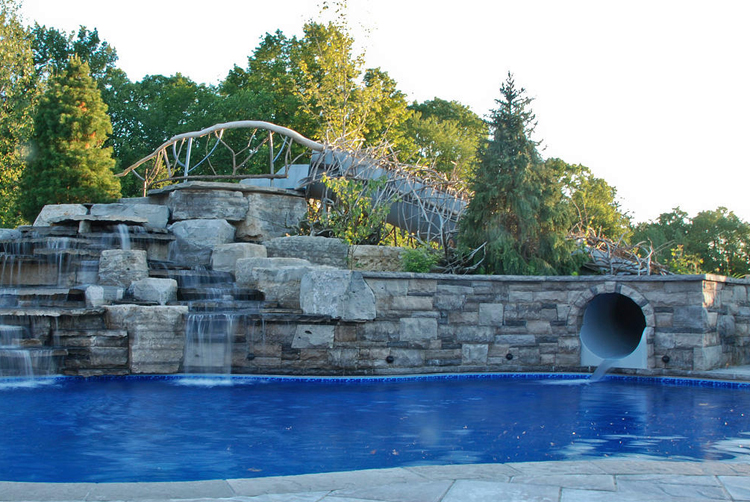

Fiberglass Landscape Slide Model: CedarcroftFiberglass Flume Landscape & Hillside Slide

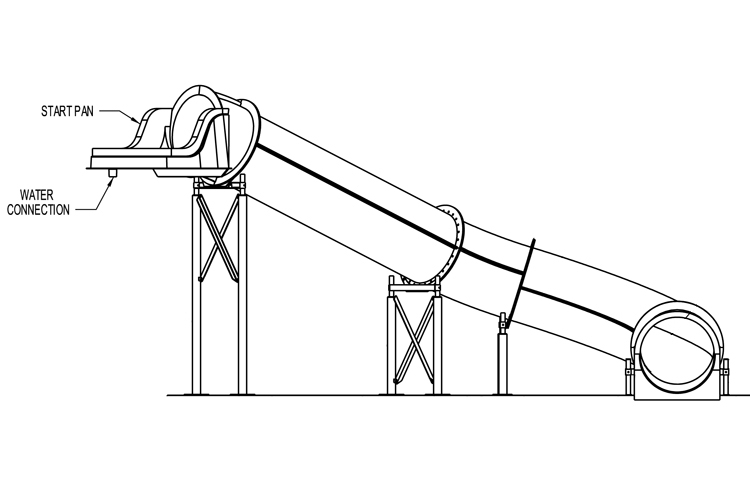

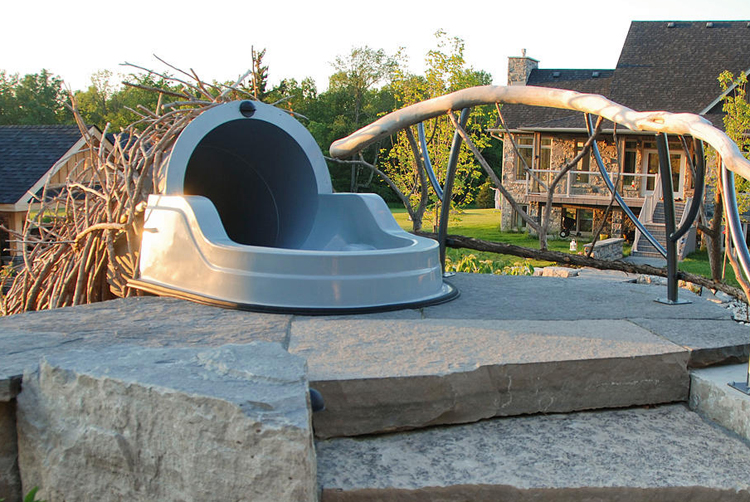

Model: Cedarcroft

Description : Single closed fiberglass flume designed for hillside and landscape applications.
Slide Run : 34' 0"
Centerline Run : 31' 1"
Slide Entrance Height : 8' 2"
Space Requirements : 23' 5" x 10' 10" – Space requirements may vary with options chosen.

  • 32" inside diameter closed fiberglass flume
  • 20-40 gpm water flow required
  • Splash down dimension 12' 8" x 20' 0"
  • Minimum water depth: 5' 0"
Landscaping designed by Cedarcroft Landscape & Design, Ontario, Canada

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

Fiberglass Landscape Slide Model: Steinberg

Fiberglass Landscape Slide Model: Steinberg

Fiberglass Landscape Slide Model: Steinberg

Fiberglass Landscape Slide Model: Steinberg

Fiberglass Landscape Slide Model: Steinberg

Fiberglass Landscape Slide Model: Steinberg

Fiberglass Landscape Slide Model: Steinberg

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

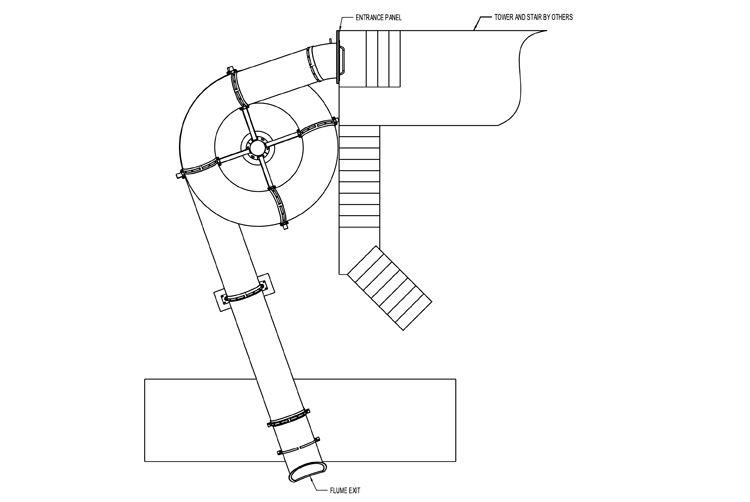

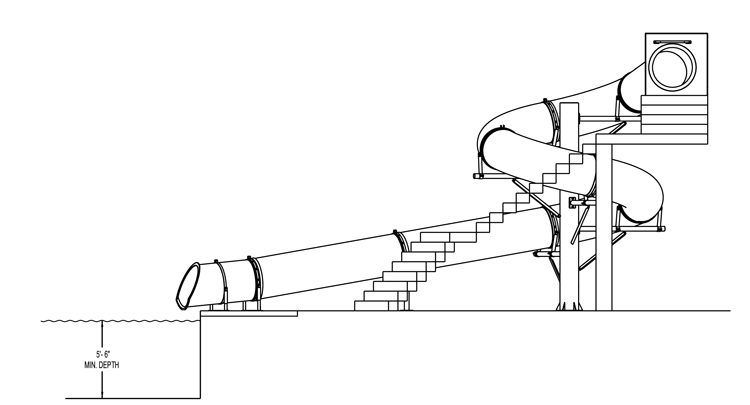

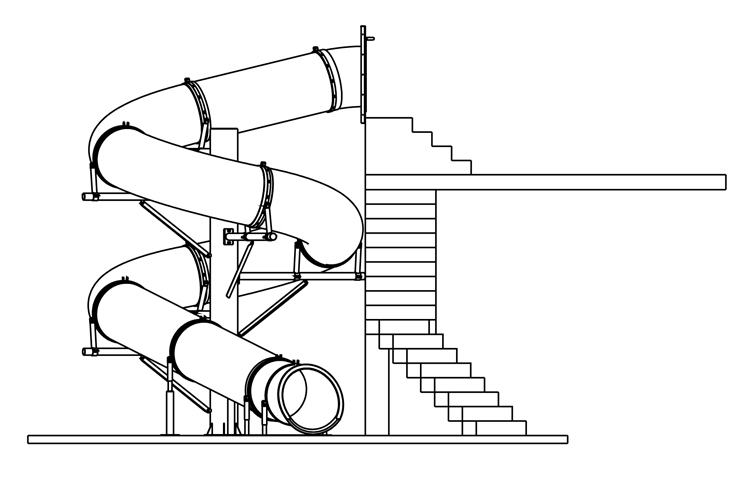

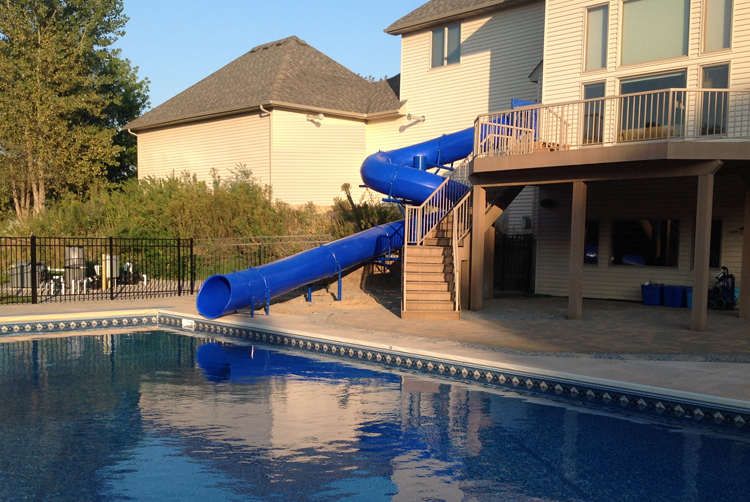

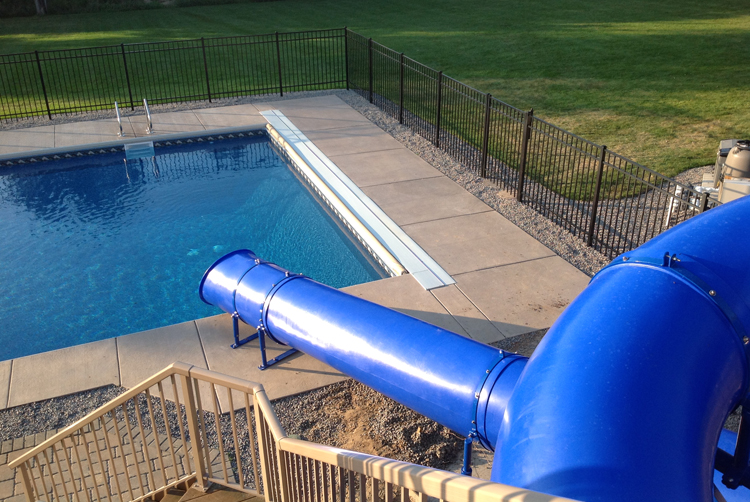

Landscape Slide Model: DeRockerPolyethylene Flume Landscape & Hillside Slide

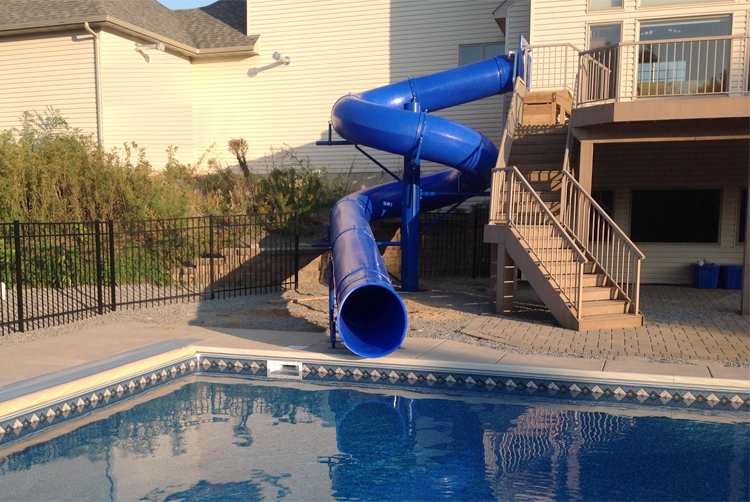

Model: DeRocker

Description : Single polyethylene flume slide featuring 360° and 90° curves.
Centerline Run : 68' 11"
Slide Entrance Height : 14' 0"
Space Requirements : 11' 10" x 31' 0" – Space requirements may vary with options chosen.

  • 30" inside diameter polyethylene flume
  • 20-40 gpm water flow recommended
  • Splash down dimension 12' 6" x 20' 0"
  • Minimum water depth: 5' 6"

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

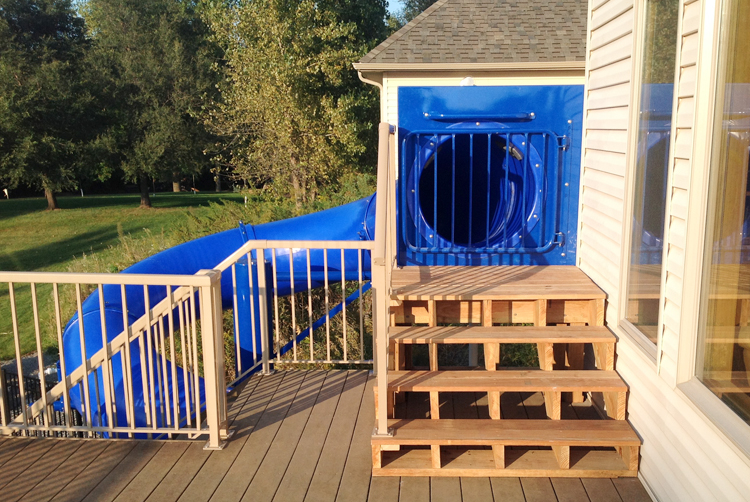

Landscape Slide Model: DeRocker Landscape Slide Model: DeRocker Landscape Slide Model: DeRocker Landscape Slide Model: DeRocker Landscape Slide Model: DeRocker Landscape Slide Model: DeRocker

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

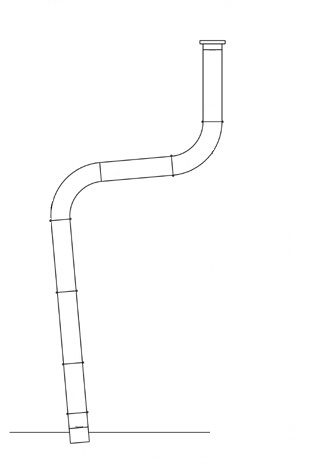

Landscape & Hillside Slide Model: DolharePolyethylene Flume Landscape & Hillside Slide
Model: Dolhare

Description :Single polyethylene flume designed for hillside and landscape applications.
Slide Run : 74' 2 "
Slide Elevaton Height : 23' 8"
Height above Water Level : 2'
Platform Size : N/A
Space Requirements : 53’ x 23’ 7” – Space requirements may vary with options chosen.

Features
  • 30" inside diameter polyethylene flume
  • 20-40 gpm water flow recommended
  • Splash down dimension 12' 6" x 20' 0"
  • Minimum water depth: 5' 6"

click on images to enlarge

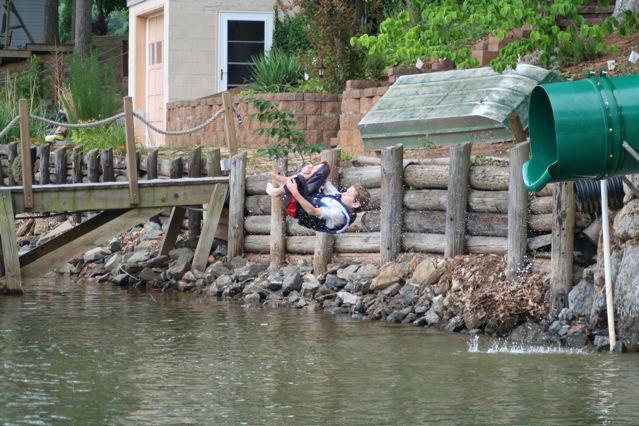

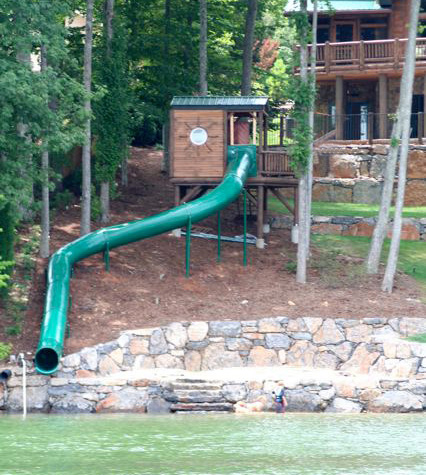

Landscape & Hillside Slide Model: Dolhare Landscape & Hillside Slide Model: Dolhare Plan View

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

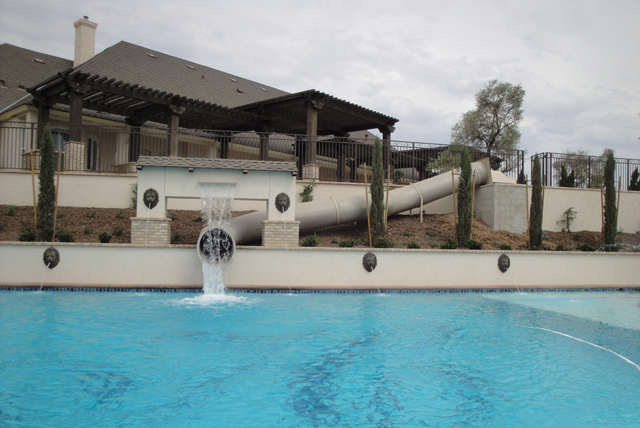

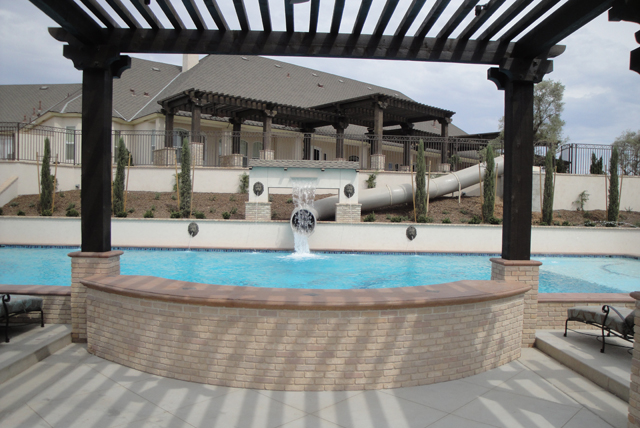

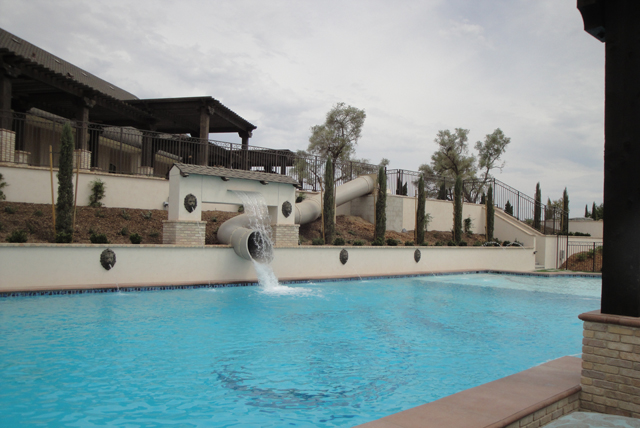

Landscape & Hillside Slide Model: HathawayPolyethylene Flume Landscape & Hillside Slide
Model: Hathaway

Description : Single polyethylene flume designed for hillside and landscape applications.
Centerline Run : 38' 6"
Slide Entrance Height : 9' 9"
Space Requirements : 36' 1" x 16' 0" – Space requirements may vary with options chosen.

  • 30" inside diameter polyethylene flume
  • 250 gpm water flow recommended
  • Splash down dimension 13' 0" x 20' 0"
  • Minimum water depth: 3' 6"

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

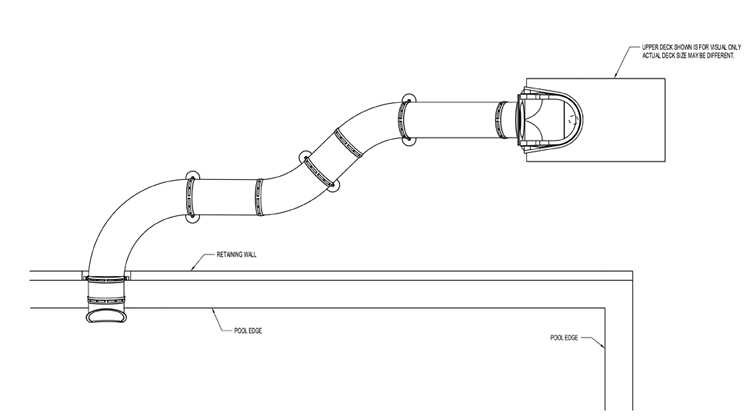

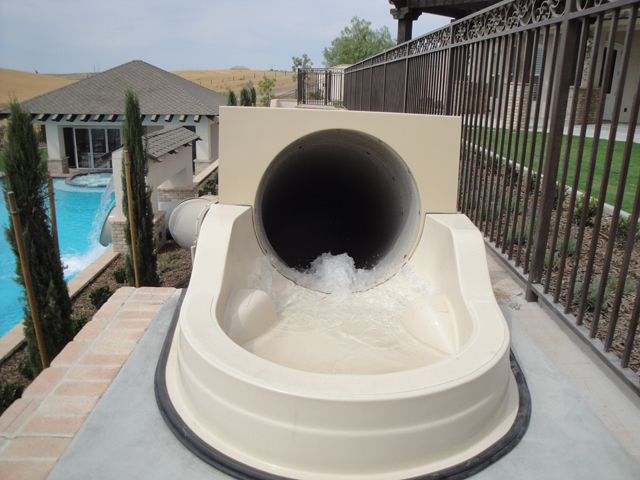

Landscape & Hillside Slide Model: Hathaway Landscape & Hillside Slide Model: Hathaway Landscape & Hillside Slide Model: Hathaway Landscape & Hillside Slide Model: Hathaway Plan View

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

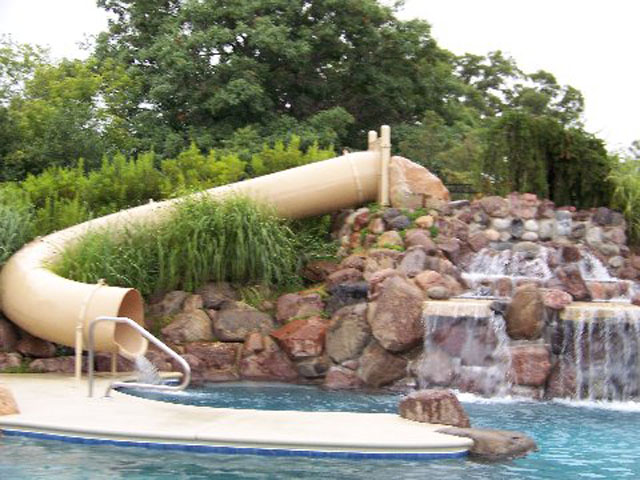

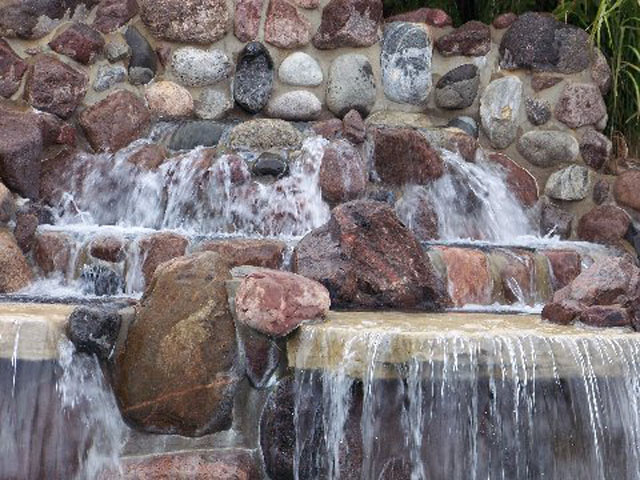

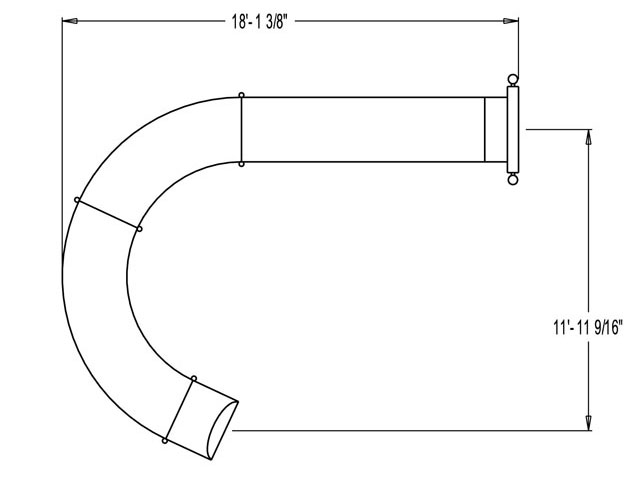

Landscape & Hillside Slide Model: HolmanPolyethylene Flume Landscape & Hillside Slide

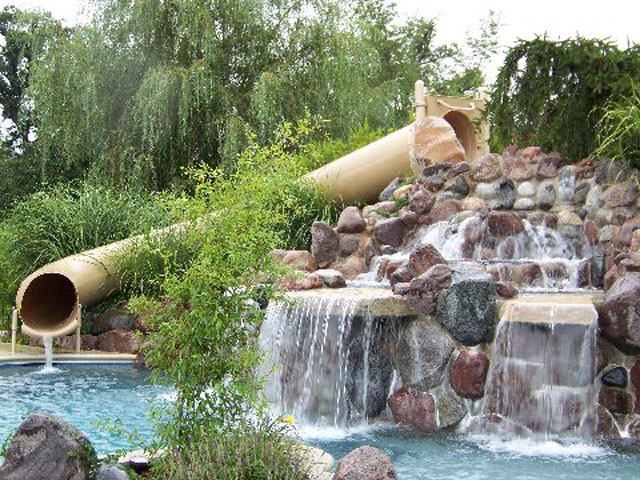

Model: Holman

Description :Single polyethylene flume designed for hillside and landscape applications.
Slide Run : 33'
Elevation Height : 7' 6"
Slide Entrance Height : 7' 6"
Space Requirements : 18' 2" x 12' – Space requirements may vary with options chosen.

  • 30" inside diameter polyethylene flume
  • 14-20 gpm water flow recommended
  • Splash down dimension 12' 6" x 20'
  • Minimum water depth: 5'

click on images to enlarge

Landscape & Hillside Slide Model: Holman Landscape & Hillside Slide Model: Holman Landscape & Hillside Slide Model: Holman Plan View

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

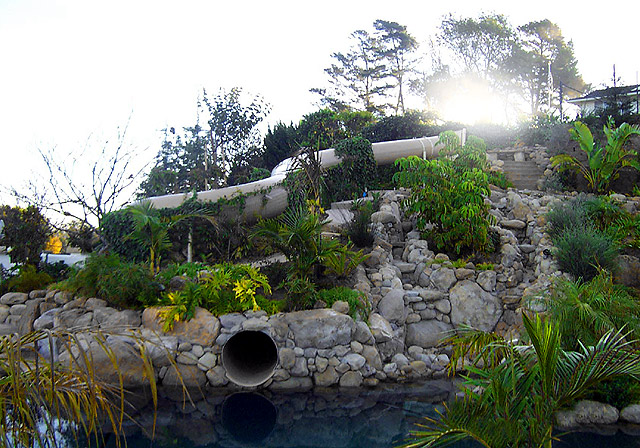

Landscape & Hillside Slide Model: JensenPolyethylene Flume Landscape & Hillside Slide
Model: Jensen

Description :Single polyethylene flume designed for hillside and landscape applications.
Slide Run : 104'
Slide Elevaton Height : 16' 10"
Platform Size : N/A
Space Requirements : 49' x 29' 10" – Space requirements may vary with options chosen.

  • 30" inside diameter polyethylene flume
  • 20-40 gpm water flow recommended
  • Splash down dimension 12' 6" x 20'
  • Minimum water depth: 3'

click on image to enlarge

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

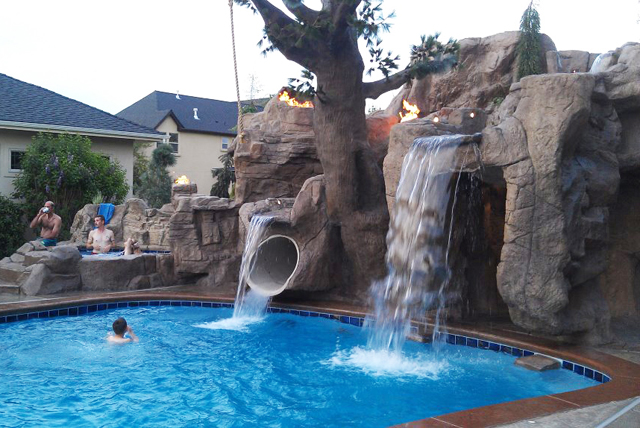

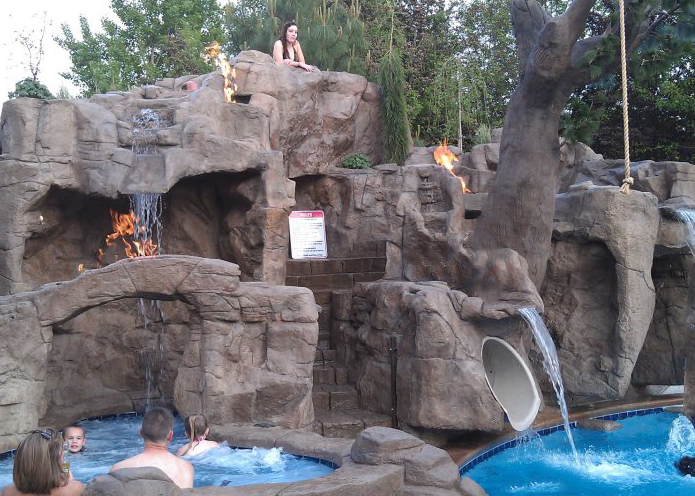

Landscape & Hillside Slide Model: MahoneyPolyethylene Flume Landscape & Hillside Slide
Model: Mahoney

Description : Single polyethylene flume designed for hillside and landscape applications.
Centerline Run : 41' 2"
Slide Entrance Height : 10' 0"
Space Requirements : 17' 10" x 17' 3" – Space requirements may vary with options chosen.

  • 30" inside diameter polyethylene flume
  • 20-40 gpm water flow required.
  • Splash down dimension 12' 6" x 20' 0"
  • Minimum water depth: 5' 0"

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

Landscape & Hillside Slide Model: Mahoney

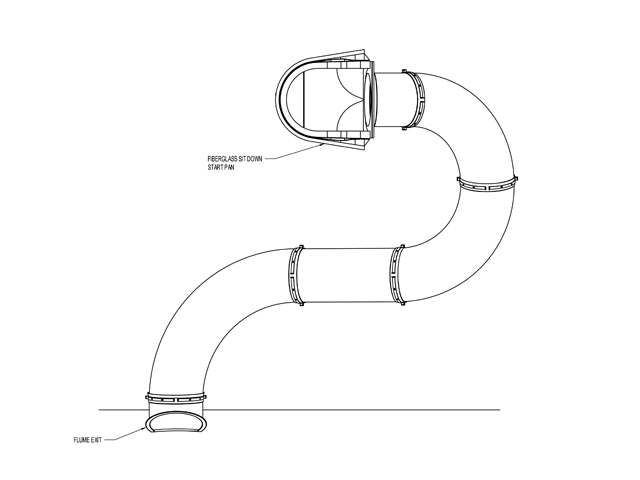

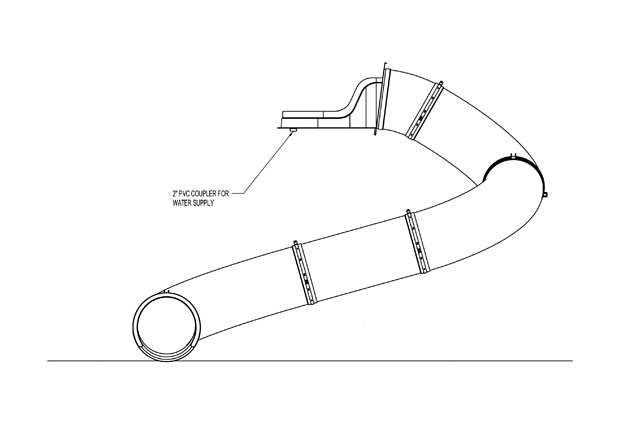

Landscape & Hillside Slide Model: Mahoney Plan ViewLandscape & Hillside Slide Model: Mahoney Plan View

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

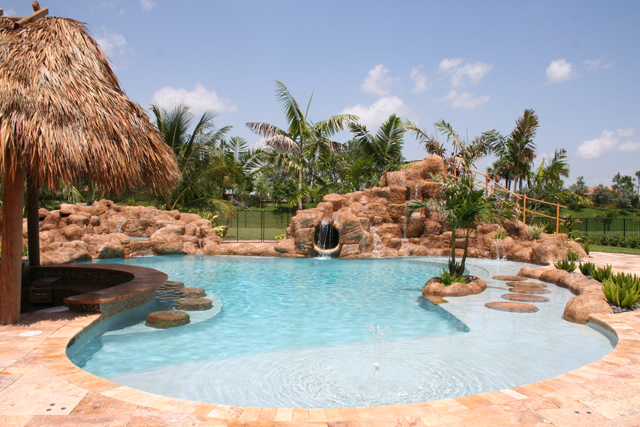

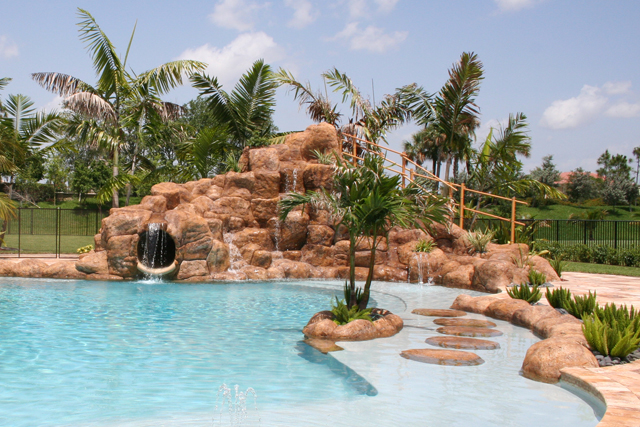

Landscape & Hillside Slide Model: Pastrana Polyethylene Flume Landscape & Hillside Slide
Model: Pastrana

Description :Single polyethylene flume designed for hillside and landscape applications.
Slide Run : 20' 4"
Slide Entrance Height : 6' 6"
Space Requirements : 7' 6" x 14' 1" – Space requirements may vary with options chosen.

  • 30" inside diameter polyethylene flume
  • 20-40 gpm water flow recommended
  • Splash down dimension 12' 6" x 20'
  • Minimum water depth: 3'

Landscape & Hillside Slide Model: Pastrana

click on images to enlarge

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

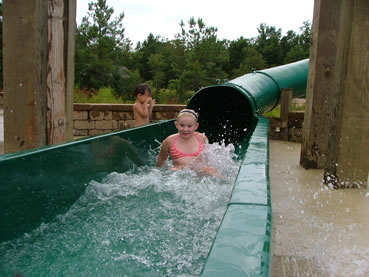

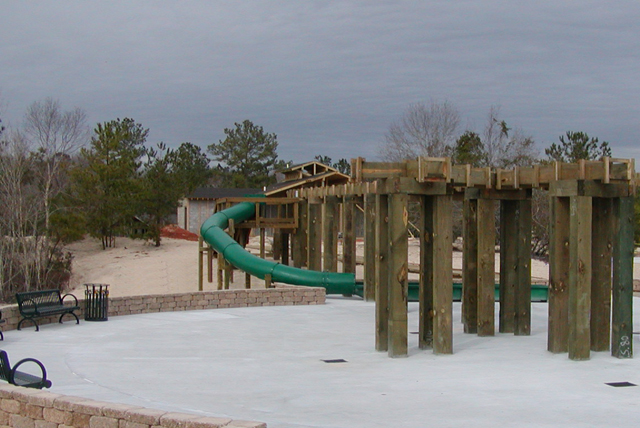

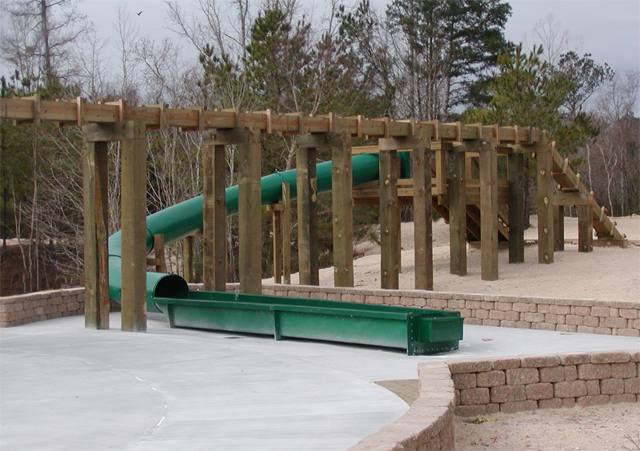

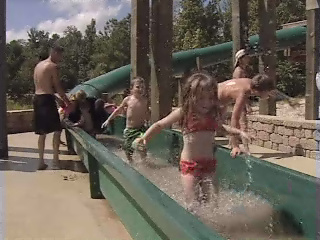

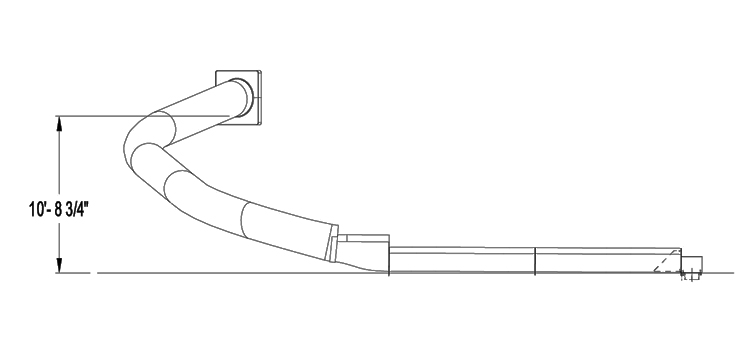

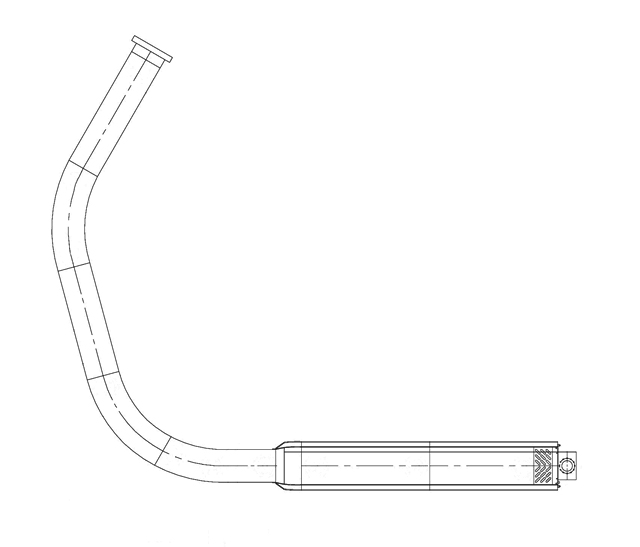

Hillside Slide Model: PiggettPolyethylene Flume Hillside Slide with Exit Lane
 Model: Piggett

Description: Single 30” I.D. polyethylene flume with fiberglass exit lane.
Centerline Run: 48' 7"
Slide Entrance Height: 10’ 8-3/4”.

  • 30" inside diameter polyethylene flume
  • Exit lanes
  • Self-enclosed recirculating system (no pool required)
  • 60 gpm water flow required.

Recirculating System
NO POOL REQUIRED!

click on images to enlarge

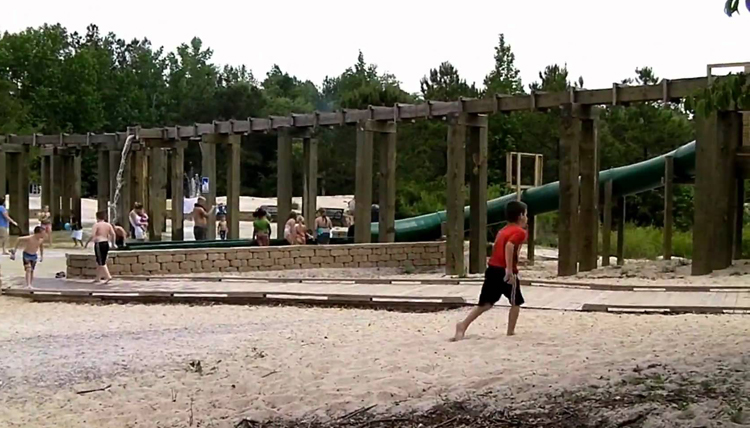

Hillside Slide Model: Piggett Hillside Slide Model: Piggett Hillside Slide Model: Piggett Hillside Slide Model: Piggett Hillside Slide Model: Piggett plan view Hillside Slide Model: Piggett plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

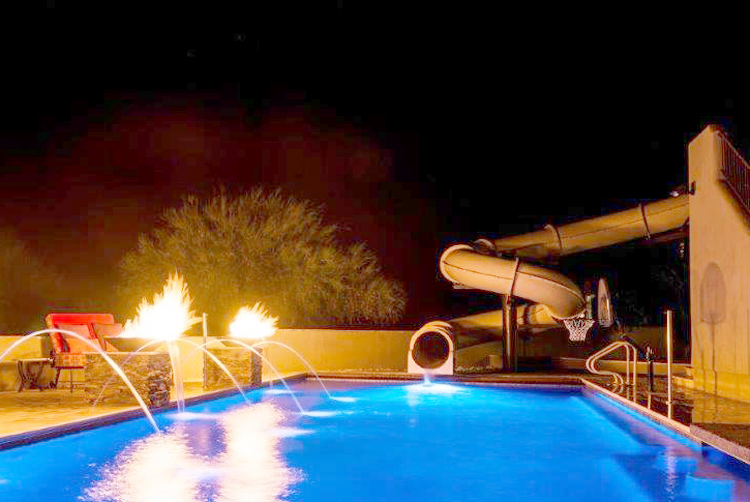

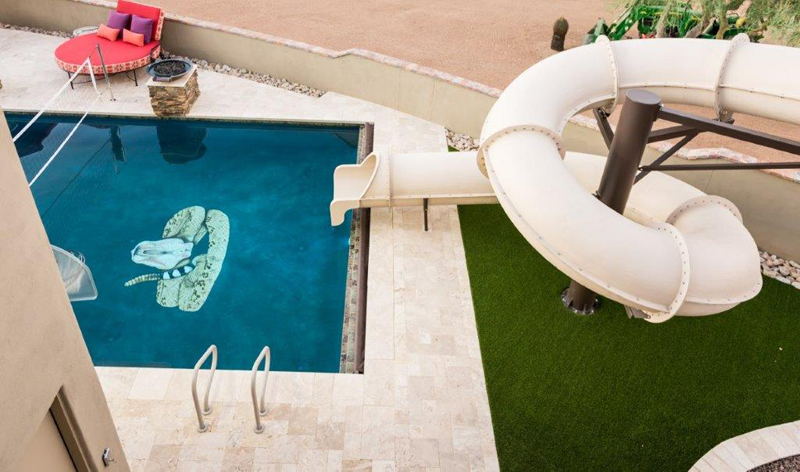

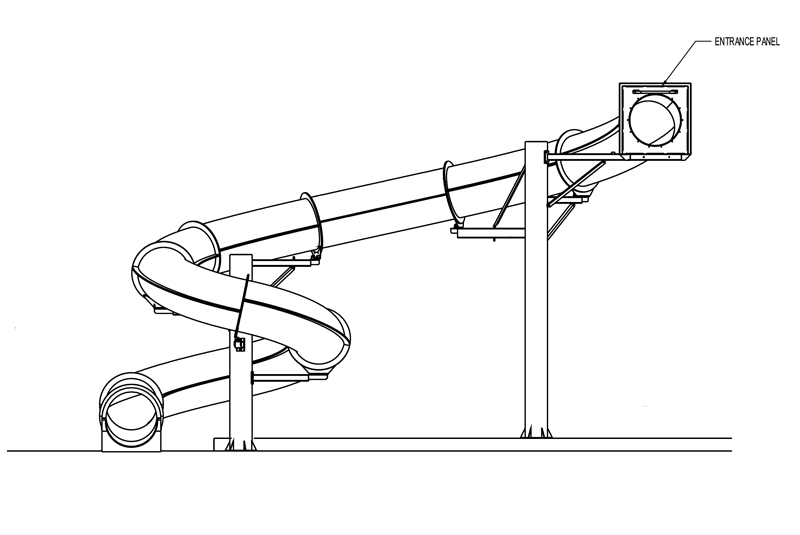

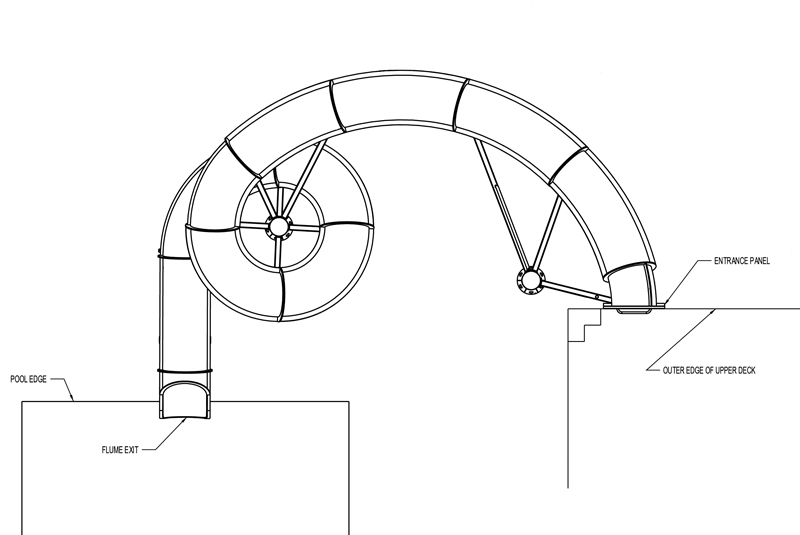

Closed Fiberglass Flume Slide Model: RileyClosed Fiberglass Flume Water Slide

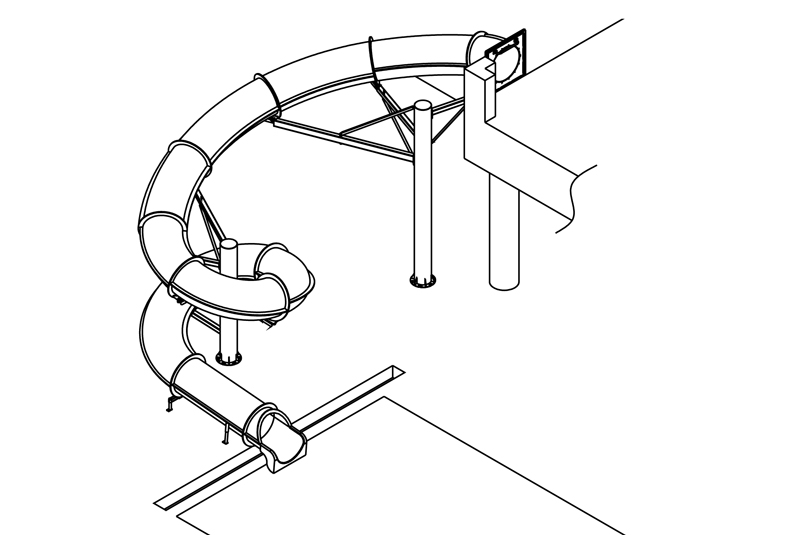

Model: Riley

Description: Closed fiberglass flume slide featuring a 360° curve.
Centerline Run: 76’6
Entry Height: 16' 0"
Platform Size: Platform and stairs done by others.
Space Requirements: 31’0” x 20’3” – Space requirements may vary with options chosen.
  • 32" inside diameter closed flume fiberglass water slide.
  • Stairs & platform: available.
  • Water flow required: 40-60 gpm.
  • Splash down dimension: 12' 8" x 20' 0"
  • Minimum water depth: 3' 0"

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

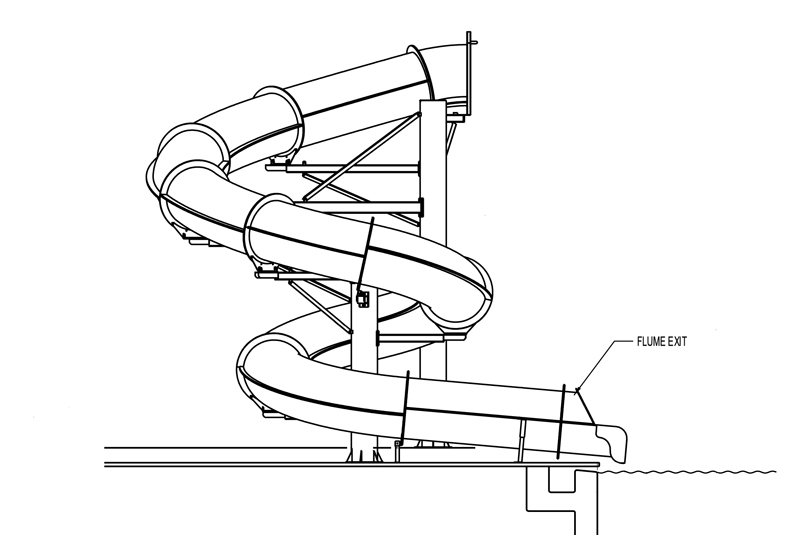

Closed Fiberglass Flume Landscape Slide Model: Riley Closed Fiberglass Flume Landscape Slide Model: Riley Closed Fiberglass Flume Landscape Slide plan view Model: Riley Closed Fiberglass Flume Landscape Slide plan view Model: Riley Closed Fiberglass Flume Landscape Slide plan view Model: Riley Closed Fiberglass Flume Landscape Slide plan view Model: Riley

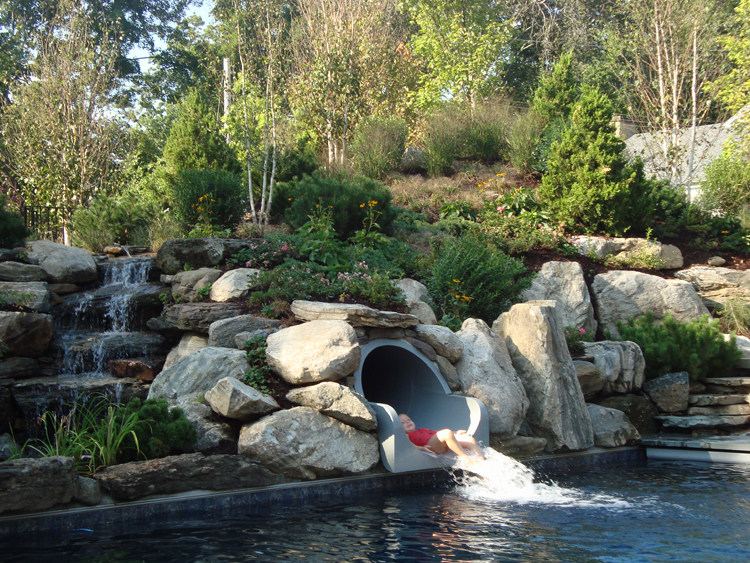

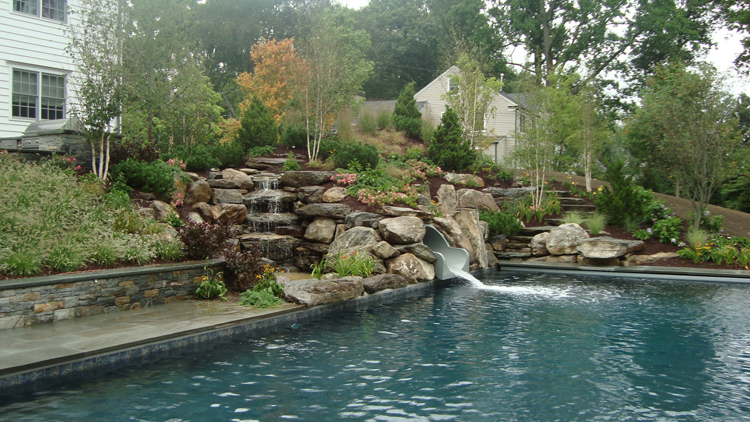

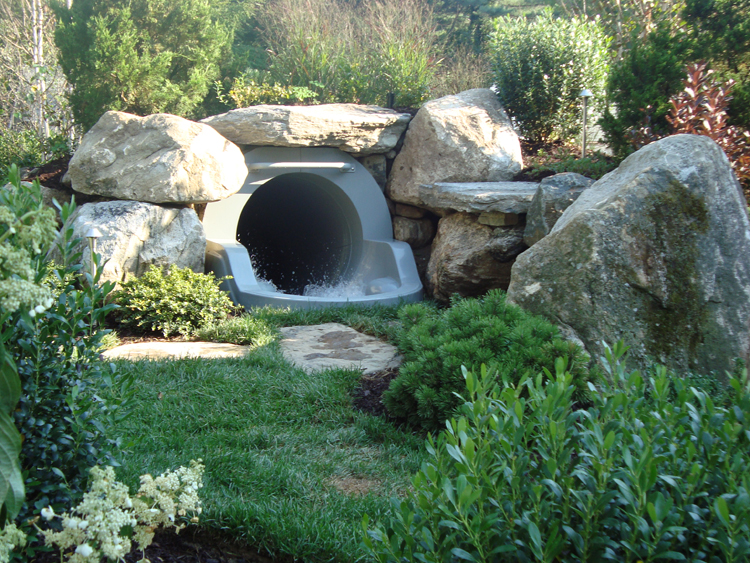

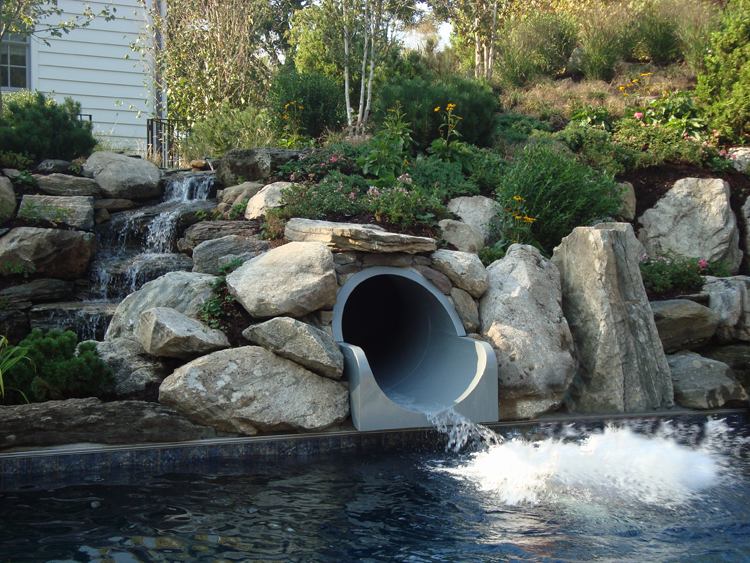

Fiberglass Landscape Slide Model: SteinbergFiberglass Flume Landscape & Hillside Slide

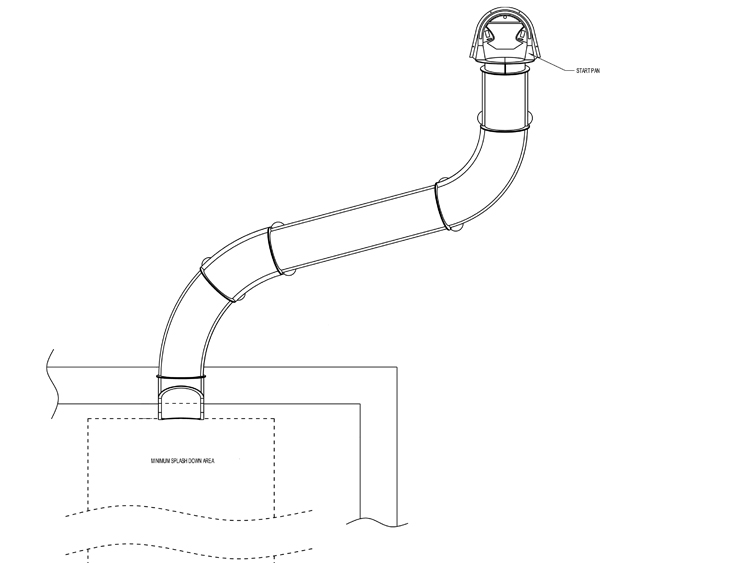

Model: Steinberg

Description : Single closed fiberglass flume designed for hillside and landscape applications.
Slide Run : 46' 3"
Centerline Run : 42' 10"
Slide Entrance Height : 8' 0"
Space Requirements : 26' 1" x 26' 11" – Space requirements may vary with options chosen.

  • 32" inside diameter closed fiberglass flume
  • 100-150 gpm water flow required
  • Splash down dimension 12' 8" x 20' 0"
  • Minimum water depth: 3' 0"
Landscaping designed by I.Q. Landscape Architects, P.C., New York

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

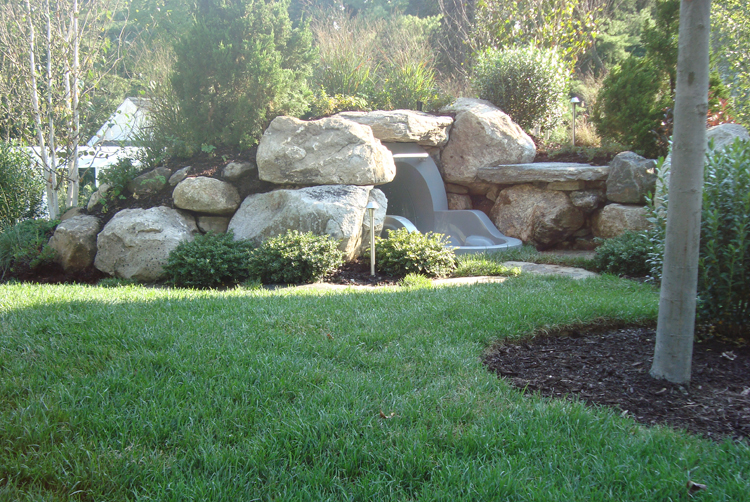

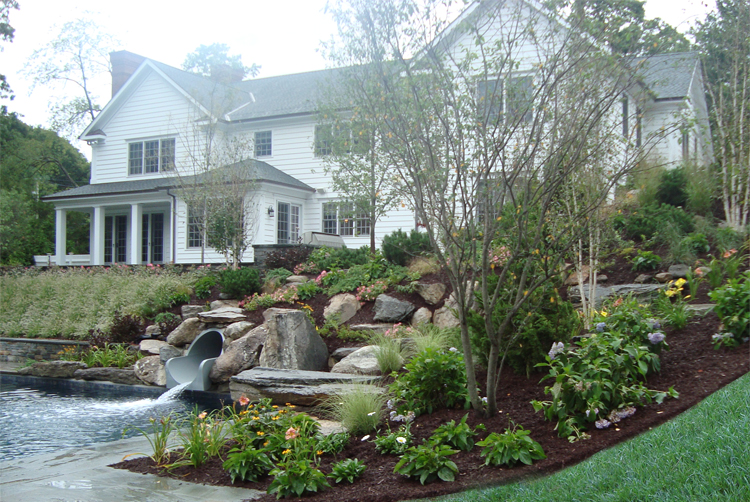

Fiberglass Landscape Slide Model: Steinberg Fiberglass Landscape Slide Model: Steinberg Fiberglass Landscape Slide Model: Steinberg

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Fiberglass Landscape Slide Model: Steinberg Fiberglass Landscape Slide Model: Steinberg Fiberglass Landscape Slide Model: Steinberg plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

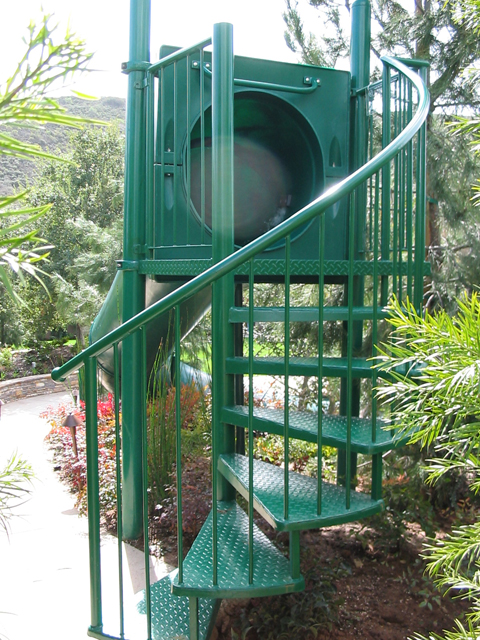

Landscape & Hillside Slide Model: Tri-ValleyPolyethylene Flume Landscape & Hillside Slide

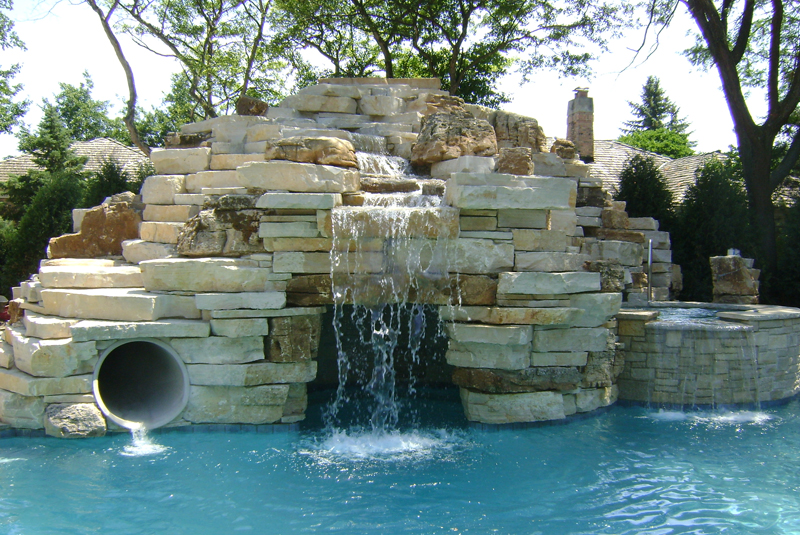

Model: Tri-Valley

Description :Single polyethylene flume designed for hillside and landscape applications.
Slide Run : 29'
Slide Elevaton Height : 9'
Platform Size : N/A

  • 30" inside diameter polyethylene flume
  • 20-40 gpm water flow recommended
  • Splash down dimension 12' 6" x 20'
  • Minimum water depth: 5' 6"

click on images to enlarge

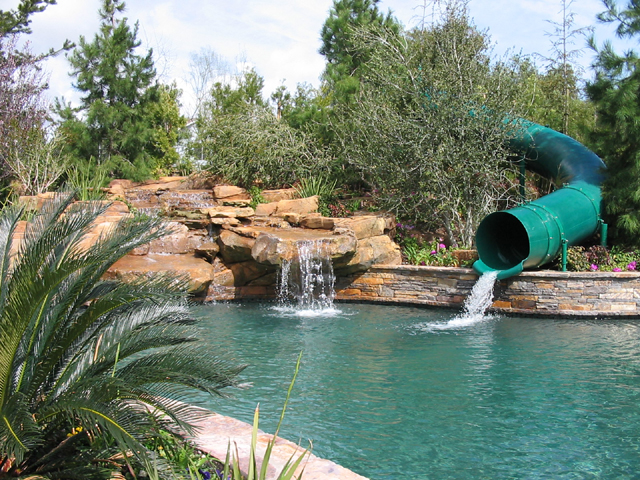

Landscape & Hillside Slide Model: Tri-Valley

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Landscape & Hillside Slide Model: Tri-Valley

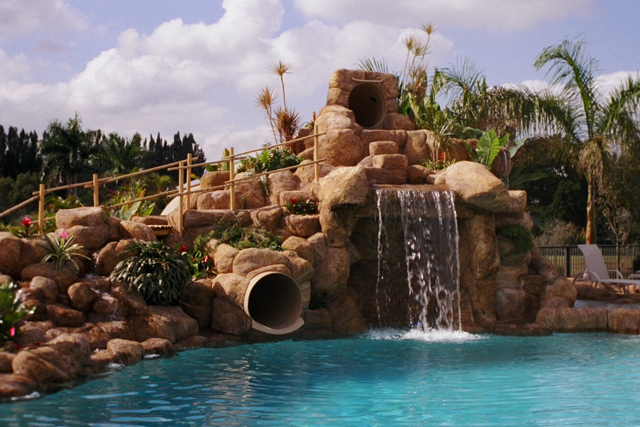

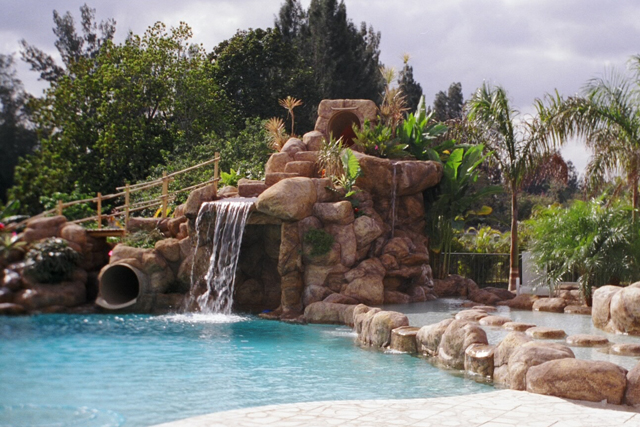

Landscape & Hillside Slide Model: VenturiPolyethylene Flume Landscape & Hillside Slide
Model: Venturi

Description :Single polyethylene flume designed for hillside and landscape applications.
Slide Run : 37' 11"
Slide Entrance Height : 10' 6"
Space Requirements : 19' 0" x 11' 7"– Space requirements may vary with options chosen.

  • 30" inside diameter polyethylene flume
  • 20-40 gpm water flow recommended
  • Splash down dimension 12' 6" x 20'
  • Minimum water depth: 3'

click on images to enlarge

Landscape & Hillside Slide Model: Venturi

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

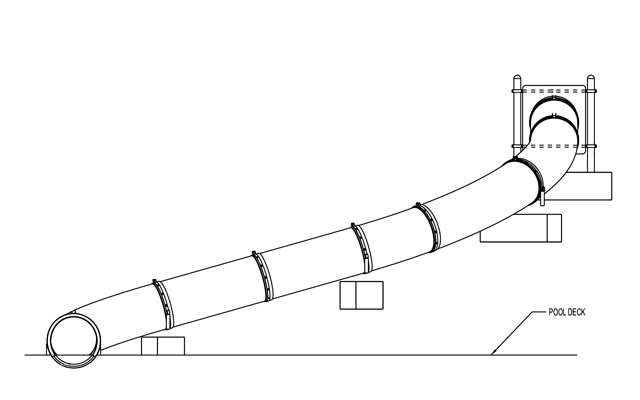

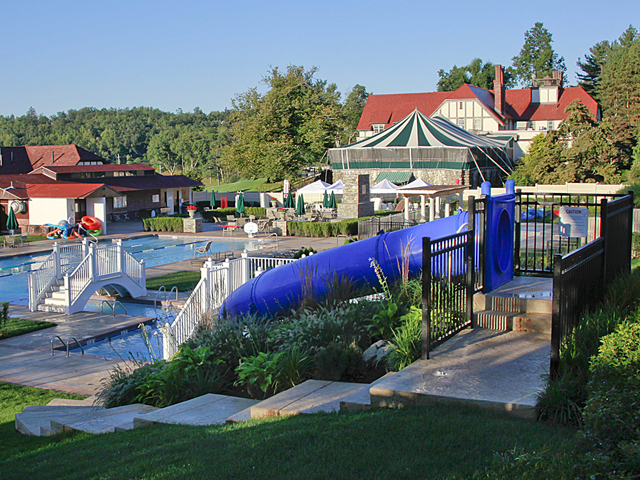

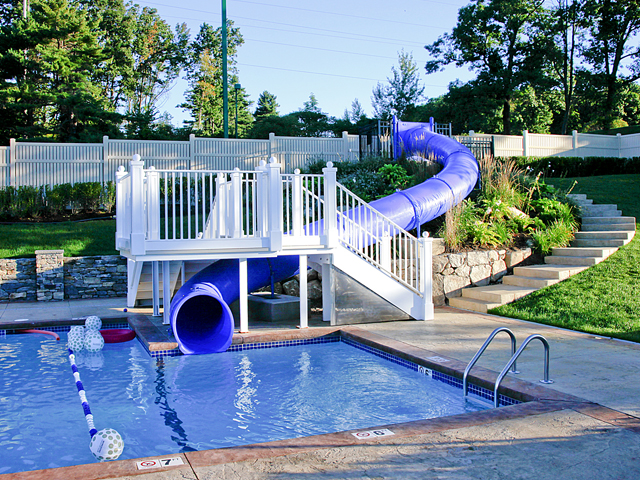

Landscape & Hillside Slide Model: WorcesterPolyethylene Flume Landscape & Hillside Slide

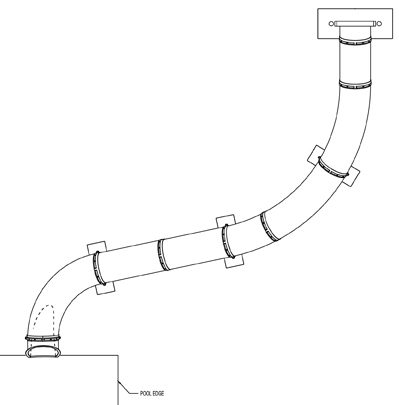

Model: Worcester

Description : Single polyethylene flume designed for hillside and landscape applications.
Slide Run : 48' 5"
Slide Entrance Height : 11' 6"
Space Requirements : 27' 11" x 29' 3" – Space requirements may vary with options chosen.

  • 30" inside diameter polyethylene flume
  • 20-40 gpm water flow recommended
  • Splash down dimension 12' 6" x 15'
  • Minimum water depth: 5' 6"

click on images to enlarge

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

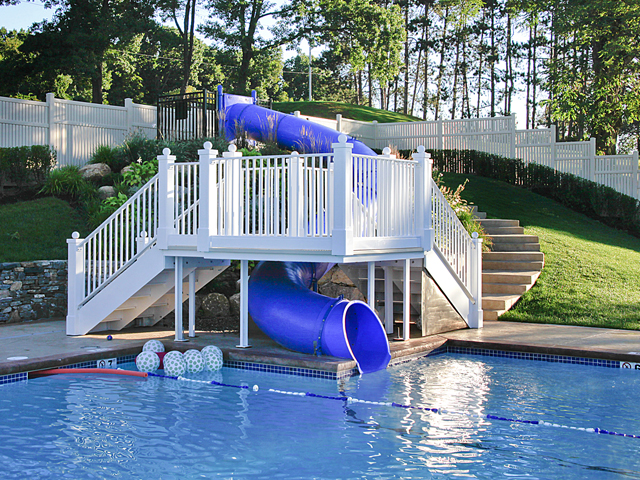

Landscape & Hillside Slide Model: Worcester Landscape & Hillside Slide Model: Worcester Landscape & Hillside Slide Model: Worcester Plan View Landscape & Hillside Slide Model: Worcester Plan View

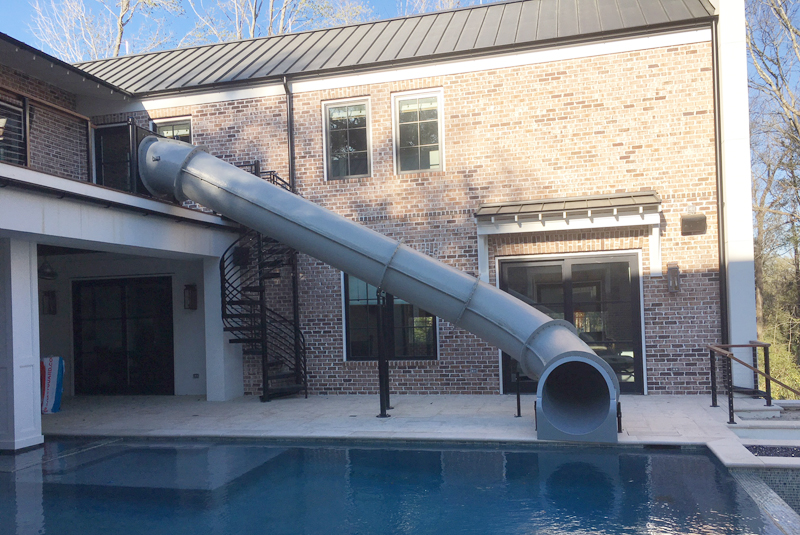

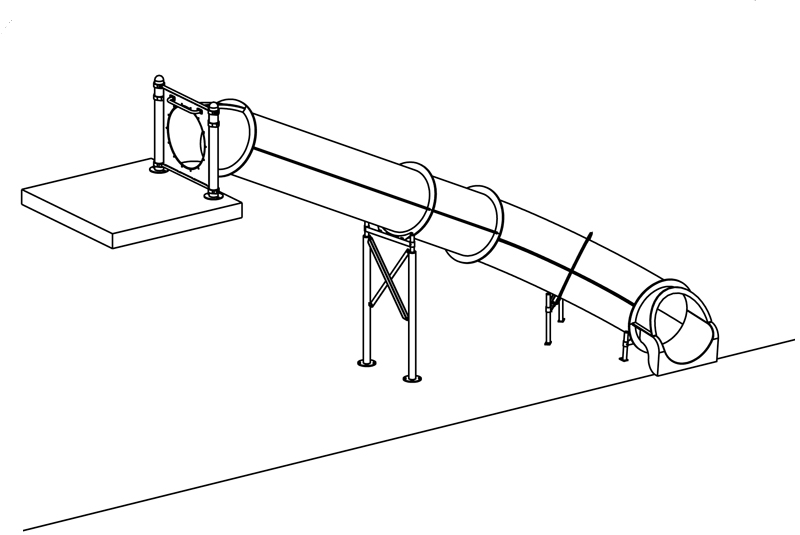

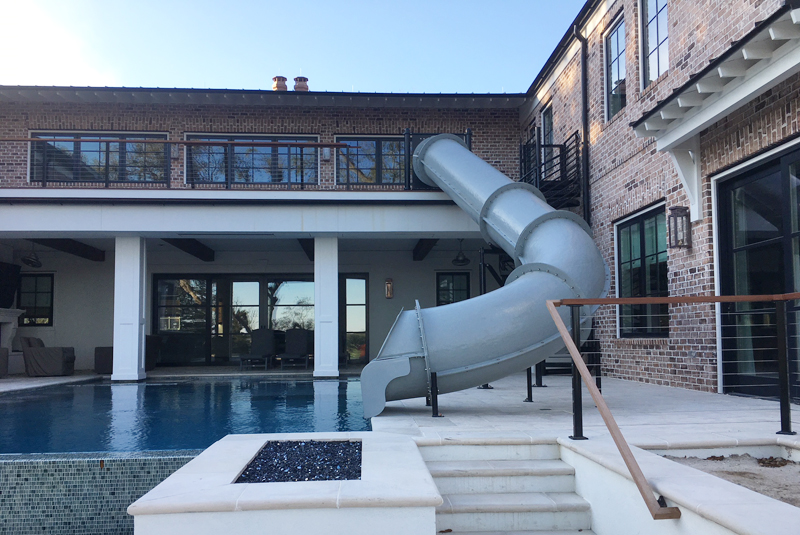

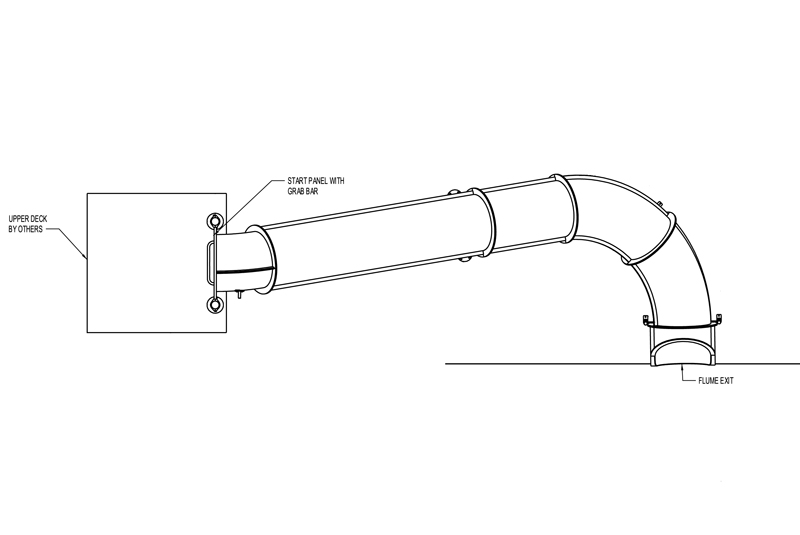

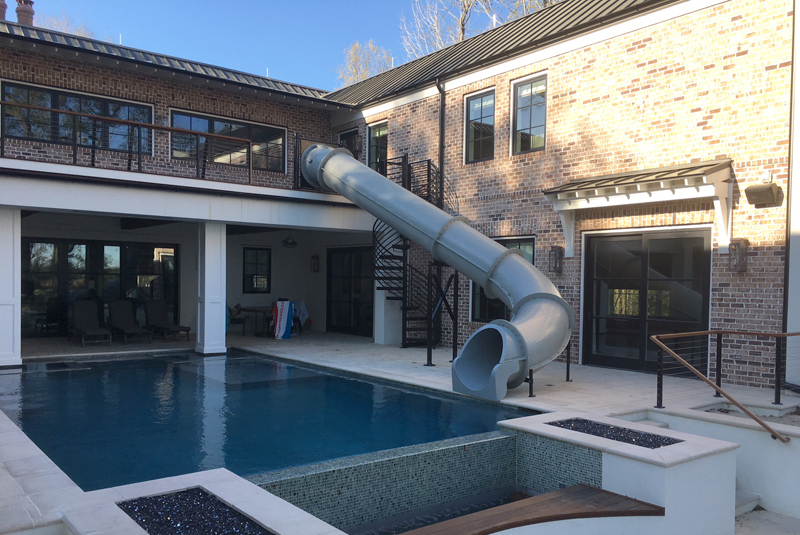

Closed Fiberglass Flume Landscape Slide Model: 9410-32Closed Fiberglass Flume Water Slide
Model: 9210-32

Description: Closed fiberglass flume slide with a 90° curve.
Centerline Run: 30’ 0"
Entry Height: 12' 1-9/16"
Platform Size: Platform and stairs done by others.
Space Requirements: 24’ 3” x 9’ 1” – Space requirements vary
  • 32" inside diameter closed flume fiberglass water slide.
  • Stairs & platform: available.
  • Water flow required: 14-20 gpm.
  • Splash down dimension: 12' 8" x 18' 0"
  • Minimum water depth: 5' 0"

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

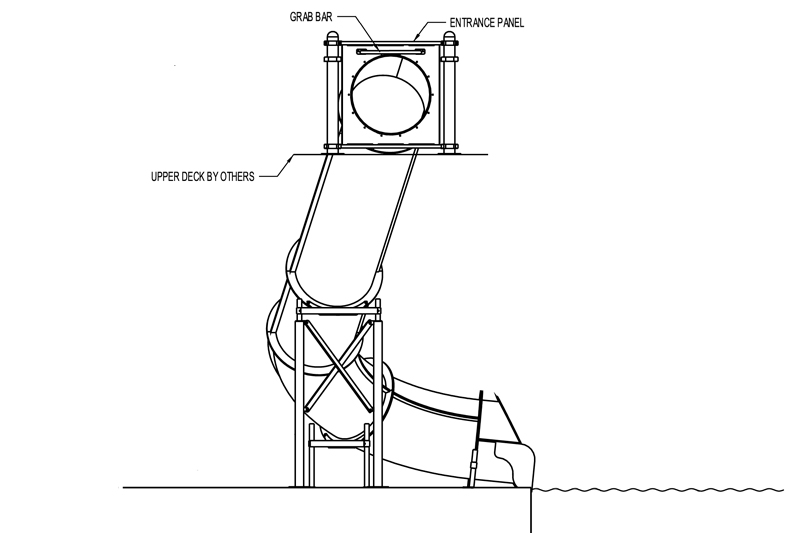

Closed Fiberglass Flume Landscape Slide Model: 9410-32

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Closed Fiberglass Flume Landscape Slide Model: 9410-32 Closed Fiberglass Flume Landscape Slide Model: 9410-32 plan view Closed Fiberglass Flume Landscape Slide Model: 9410-32 plan viewClosed Fiberglass Flume Landscape Slide Model: 9410-32 plan view



USA flag   Manufactured with Pride in the U.S.A.

Related Links

Model List: Slides
Model List: Spray
Pool & Water Slide Reference Guide
Recent Aquatic Additions to Website

Color Charts
*Polyethelene Flume Colors
*Polyethelene Base Plate Escutcheon Cover Colors
*Fiberglass Flume Colors
*Aqua-Plast Colors
*Powder Coat Colors

*Requires Adobe Acrobat

Site Map

Single Closed Flume Landscape & Hillside Slides

Add Fun and Excitement
Landscape slides are an excellent way to increase the aesthetic value of your surroundings, while providing an exciting and fun water slide experience.

Slides are available in open, closed or closed/open combination flume(s) that can meander around the hillside for a range of 20' to 300' plus. Factory assistance is available in determining the slide elevation, location, and radius.

Features:

  • 30" inside diameter polyethylene water slide flume
  • 32", 36", 42" and 54" inside diameter fiberglass water slide flume
  • Polyethylene Water Slide Flume: color impregnated UV stabilized
  • Fiberglass Water slide Flume: ultra violet stabilized gel coat
  • Body, speed, raft, drop & exit lane water slides
  • Single, double or triple flumes
  • Place in shallow or deep water
  • Water Depth: 3' minimum or deeper
  • 20-800 gpm water flow required
  • Flume posts are required in accordance to the elevation
  • Stairs & platform: available
  • Platform: Aqua-Plast coated textured aluminum surface
  • Stairs: 7” rise, 11” tread, 36” wide; Aqua-Plast coated textured aluminum surface; closed risers.
  • Stainless steel base plates, hardware and anchor bolts
  • Low maintenance
  • Designed with flexibility to allow for sloping pool decks
  • Designs for your unique application and budget requirements.
  • Over 70 standard models available
  • Increase pool attendance
  • Variety of colors available
  • USA made

Options:

  • Deluxe Series: Stainless steel polyester powder coated except tower and flume posts which are mild steel with chemical resistant Aqua-Kote undercoating and polyester powder coat topcoat.
    Note: Platform and stair treads are textured Aqua-Plast coated aluminum
  • North Star Series: Mild steel with chemical resistant Aqua-Kote undercoating and polyester powder coat topcoat.
    Note: Platform and stair treads are textured Aqua-Plast coated aluminum.
  • Hot dipped galvanized available
  • Stairs: (a) 48” width; (b) Inner handrails (if applicable); (c) Spiral stairs
  • Stair Configurations: Many variations available
  • Narrow Deck Configurations
  • Gates: Locking gate to flume entrance.
  • Flag and banner holders.
  • Tower Roof: (a) Steel; (b) Wood; (c) Fabric; (d) Tongue & groove decking with the wood or steel roofs.
  • Water pumps & covers
  • Perimeter Fencing
  • Factory installation or on-site technical assistance.

Now standard for all stairs:
  Closed risers
  Handrail vertical slats

Aquatic Links: Drop Slides, Pool Slides, Water Slides, Hillside & Landscape Slides, Theme Slides, Spray Features and Spray Parks & Water Play Structures

Hillside & Landscape Links: Double Flume, Single Open Flume, Single Closed Flume, & Single Closed/Open Flume

Model List: Slides
