Quality Since 1976!       Design-Engineer-Manufacture-Install

Click on thumbnails below to see specifications and photos of each model

  • 2704-2
    Water Play Structure Model 2704-2
  • 2704-3
    Water Play Structure Model 2704-3
  • 2704-5
    Water Play Structure Model 2704-5
  • 2704-7
    Water Play Structure Model 2704-2
  • 2706
    Water Play Structure Model 2706
  • 2708
    Water Play Structure Model 2708
  • 2709
    Water Play Structure Model 2709
  • 2711-M1
    Water Play Structure Model 2711-M1
  • 1800-105
    6-Way Spray Feature Model 1800-105

Water Play Structure Model 2704-2 Water Play Structure

Model 2704-2
Dimensions: 49' 4" x 37' 3"

  • 24” outside diameter polyethylene flume water slide
  • 60” inside diameter fiberglass water slide flume
  • Stairs: 7” rise, 11” tread, 48” wide
  • 4 1/2” OD stainless pipe
  • Spray nozzles recessed
  • Stainless steel base plates and anchor system
  • Polyester powder coated finish
  • Universal flange assembly

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

Water Play Structure Model 2704-2 Water Play Structure Model 2704-2 Water Play Structure Model 2704-2 Water Play Structure Model 2704-2 Water Play Structure Model 2704-2Water Play Structure Model 2704-2Water Play Structure Model 2704-2 Water Play Structure Model 2704-2 plan view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Water Play Structure Model 2704-3Water Play Structure

Model 2704-3
Dimensions: 20' 6-1/2" x 15' 7"

  • 24” outside diameter polyethylene flume water slide
  • 60” inside diameter fiberglass water slide flume
  • Stairs: 7” rise, 11” tread, 48” wide
  • 4 1/2” OD stainless pipe
  • Spray nozzles recessed
  • Stainless steel base plates and anchor system
  • Polyester powder coated finish
  • Universal flange assembly

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

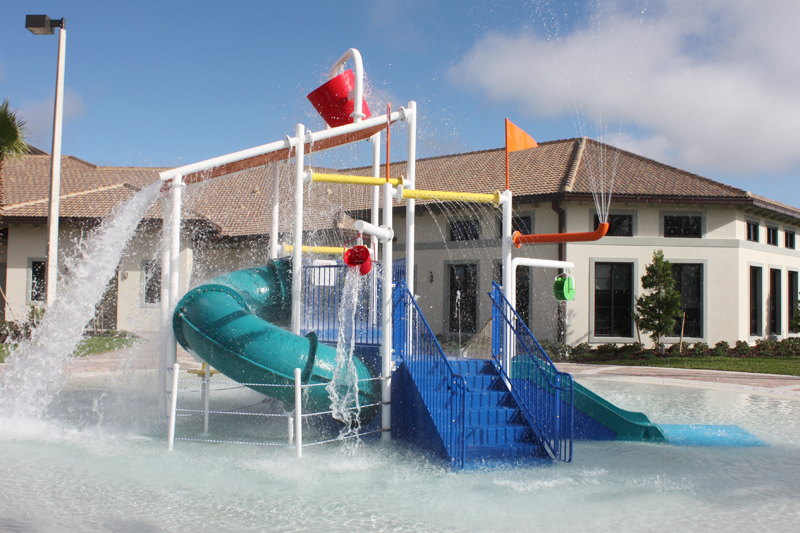

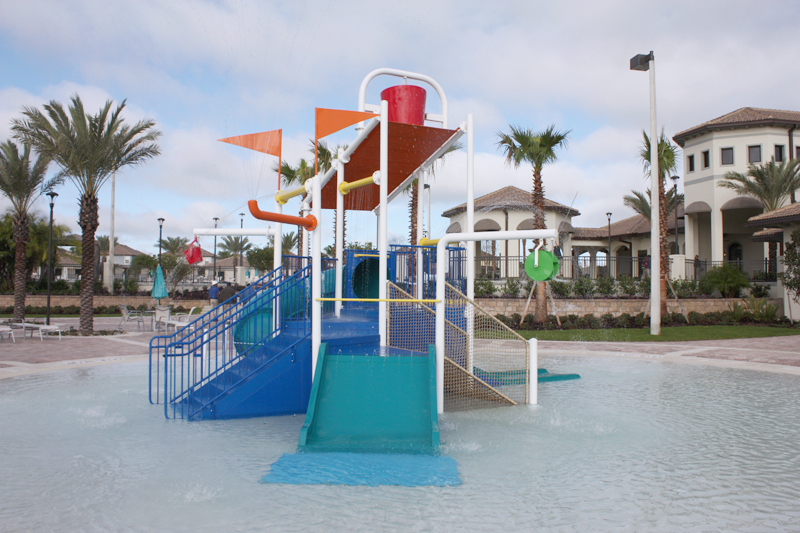

Water Play Structure Model 2704-3 Water Play Structure Model 2704-3 Water Play Structure Model 2704-3

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

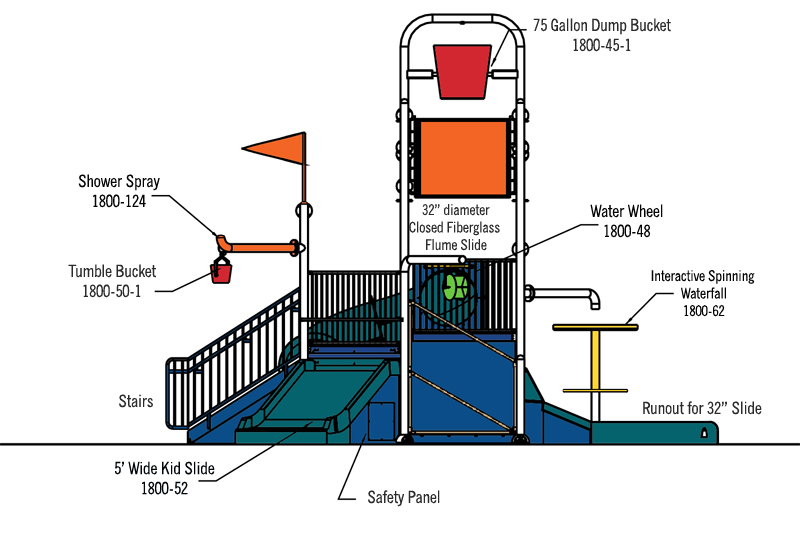

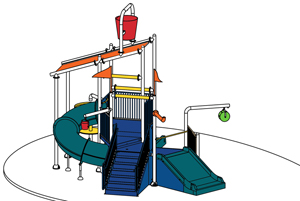

Water Play Structure Model 2704-3 plan view Water Play Structure Model 2704-3 plan view

Water Play Structure Model 2704-5Water Play Structure

Model 2704-5
Dimensions: 25' 6" x 20' 2"

  • 24” outside diameter polyethylene flume water slide
  • 60” inside diameter fiberglass water slide flume
  • Stairs: 7” rise, 11” tread, 48” wide
  • 4 1/2” OD stainless pipe
  • Spray nozzles recessed
  • Stainless steel base plates and anchor system
  • Polyester powder coated finish
  • Universal flange assembly

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

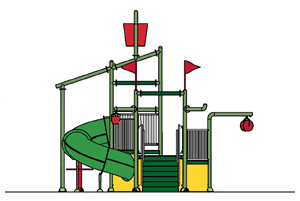

Water Play Structure Model 2704-5 Water Play Structure Model 2704-5 Water Play Structure Model 2704-5 plan view Water Play Structure Model 2704-5 plan view Water Play Structure Model 2704-5 plan view

Water Play Structure Model 2704-7Water Play Structure

Model 2704-7
Dimensions: 30' 0" x 18' 8"

  • 24” outside diameter polyethylene flume water slide
  • 60” inside diameter fiberglass water slide flume
  • Stairs: 7” rise, 11” tread, 48” wide
  • 4 1/2” OD stainless pipe
  • Spray nozzles recessed
  • Stainless steel base plates and anchor system
  • Polyester powder coated finish
  • Universal flange assembly

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

click on images to enlarge

Water Play Structure Model 2704-7 Water Play Structure Model 2704-7

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Water Play Structure Model 2704-7 Water Play Structure Model 2704-7

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Water Play Structure Model 2704-7 plan view Water Play Structure Model 2704-7 plan view

Water Play Structure Model 2706Water Play Structure

Model 2706
Dimensions: 21’ 11” x 26’ 2”

Safety panels around perimeter of tower and under staircase

  • 32” inside diameter open flume fiberglass slide
  • Stairs: 7” rise, 11” tread, 48” wide
  • 4 1/2” OD stainless pipe
  • Spray nozzles recessed
  • Stainless steel base plates and anchor system
  • Polyester powder coated finish
  • Universal flange assembly

click on images to enlarge

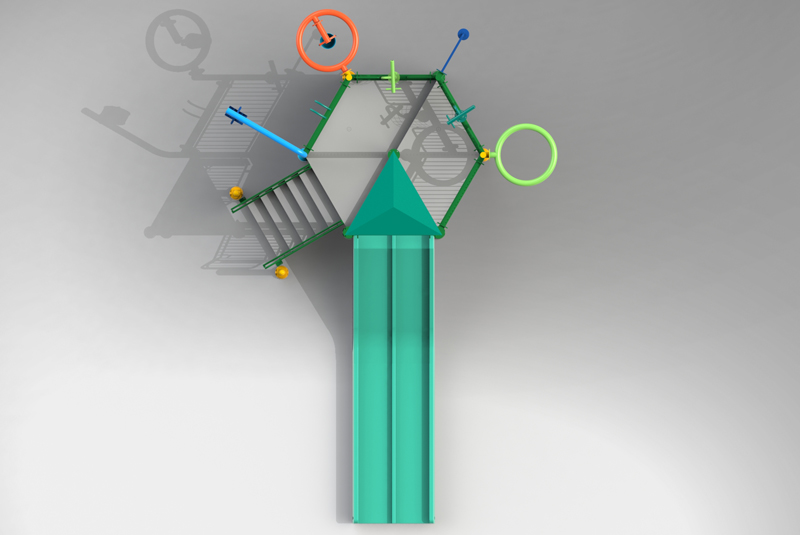

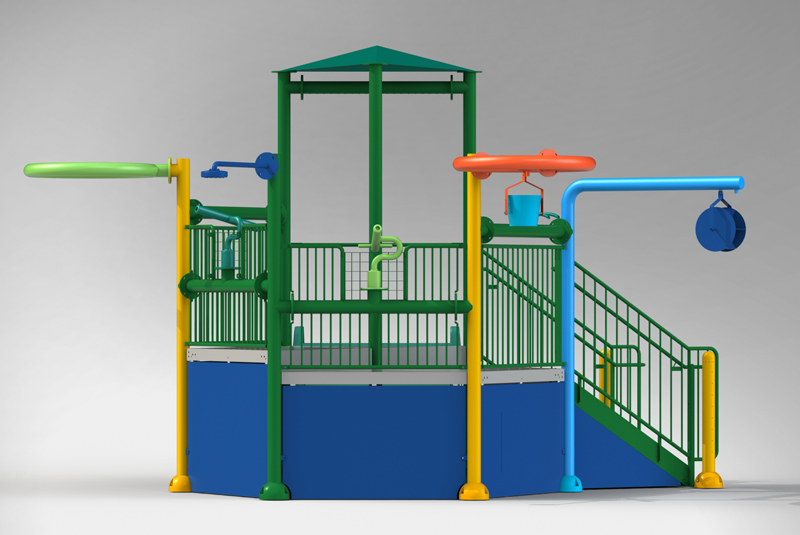

Water Play Structure Model 2706 Water Play Structure Model 2706 top view Water Play Structure Model 2706

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Water Play Structure Model 2708Water Play Structure

Model: 2708
Dimensions: 52’ 0” x 43’ 0”
GPM: 750

  • 32” inside diameter fiberglass flume slide
  • 60” inside diameter fiberglass flume water slide
  • Stairs: 7” rise, 11” tread, 48” wide
  • 4 1/2” OD stainless pipe
  • Spray nozzles recessed
  • Stainless steel base plates and anchor system
  • Polyester powder coated finish
  • Universal flange assembly

Create your own Unique Water Play Structure !

Water Play Structure Model 2708Model 2708 Offers:

  • (2) Pool slides; open or closed flumes; exit lanes included
  • (1) 5’ wide open fiberglass family slide with exit lane
  • Below deck wall panels; theme panels available
  • (2) Shade roof coverings
  • Stainless steel manifolds
  • (20) Spray features with interactive options;

    Some features shown in color model:
    *Crawl through tunnel (below deck)
    *150 gallon dumping bucket
    *Deck bubblers
    *Tumbling bucket
    *Water wheel
    *Water jets
    *Waterfall

click on images to enlarge

Water Play Structure Model 2708 top view Water Play Structure Model 2708 Water Play Structure Model 2708 top view

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Water Play Structure Model 2709 Water Play Structure

Model: 2709
Dimensions: 41’ 0” x 42’ 0”
GPM: 550

  • 32” inside diameter fiberglass flume slide
  • 60” inside diameter fiberglass flume water slide
  • Stairs: 7” rise, 11” tread, 48” wide
  • 4 1/2” OD stainless pipe
  • Spray nozzles recessed
  • Stainless steel base plates and anchor system
  • Polyester powder coated finish
  • Universal flange assembly

Create your own Unique Water Play Structure !

Water Play Structure Model 2709 top view Model 2709 Offers:

  • (1) Pool slide; open or closed flume; exit lane included
  • (1) 5’ wide open fiberglass family slide with exit lane
  • Below deck wall panels; theme panels available
  • Stainless steel manifold

    Some features shown in color model:
    *150 gallon dumping bucket
    *Tumbling bucket
    *Water wheel
    *Climbing net
    *Water jets
    *Waterfall

click on images to enlarge

Water Play Structure Model 2709 Water Play Structure Model 2709 top view Water Play Structure Model 2709

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

Water Play Structure Model 2711-M1Water Play Structure

Model 2711-M1
Dimensions: 34’ 9” x 31’ 10”

Safety panels around perimeter of tower and under staircase

  • 32” inside diameter closed flume fiberglass water slide with exit lane
  • 60” inside width open flume fiberglass slide with exit lane
  • Stairs: 7” rise, 11” tread, 48” wide
  • 4 1/2” OD stainless pipe
  • Spray nozzles recessed
  • Stainless steel base plates and anchor system
  • Polyester powder coated finish
  • Universal flange assembly

click on images to enlarge

Water Play Structure Model 2711-M1 Water Play Structure Model 2711-M1

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

6-Way Spray Feature Model 1800-105All-in-One Spray Feature

6-Way Spray Feature
Model 1800-105

High Flow: 420 gpm
Low Flow: 286 gpm
Splash Zone: 30’ x 30’
Supply Line: 6” pipe
Base Installation: (6) 7/8” Stainless steel “J” bolts (24” embedment)

  • Water Curtain: 70-105 gpm required
  • Water Rope: 22-30 gpm required
  • Water Pipe: 40-60 gpm required
  • Spray Shower: 40-60 gpm required
  • Water Arch (Double): 44-60 gpm required
  • Spray Cone: 70-105 gpm required

click on images to enlarge

6-Way Spray Feature Model 1800-105

6-Way Spray Feature Model 1800-105 6-Way Spray Feature Model 1800-105 6-Way Spray Feature Model 1800-105 6-Way Spray Feature Model 1800-105 6-Way Spray Feature Model 1800-105 6-Way Spray Feature Model 1800-105

DownloadDownload Spec Sheet
 Requires Adobe Acrobat

USA flag   Manufactured with Pride in the U.S.A.
